Description

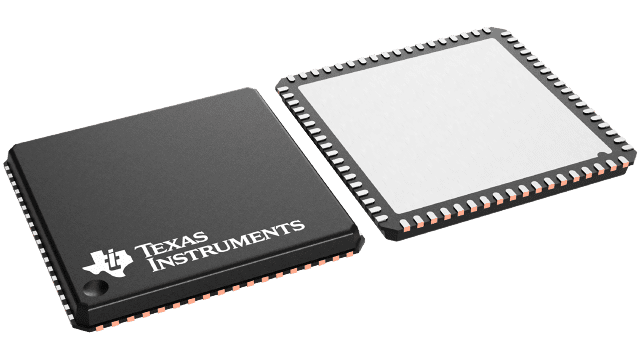

ADC32RF44IRMP Texas Instruments - Yeehing Electronics
Dual-Channel, 14-Bit, 2.6-GSPS RF-Sampling Analog-to-Digital Converter (ADC)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | None |
| 100 — 249 | None |
| 250 — 999 | None |
| 1,000 + | None |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| ADC32RF44IRMP Datasheet |
More Information
The ADC32RF44 device is a 14-bit, 2.6-GSPS, dual-channel, analog-to-digital converter (ADC) that supports RF sampling with input frequencies up to 4 GHz and beyond. Designed for high signal-to-noise ratio (SNR), the ADC32RF44 delivers a noise spectral density of –154.2 dBFS/Hz as well as dynamic range and channel isolation over a large input frequency range. The buffered analog input with on-chip termination provides uniform input impedance across a wide frequency range and minimizes sample-and-hold glitch energy.
