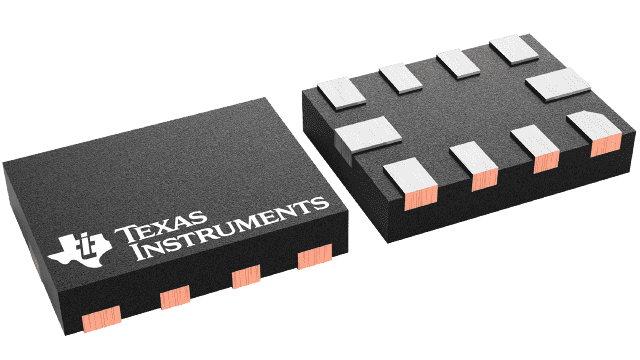

ADS1114IRUGR Texas Instruments - Yeehing Electronics

16-Bit 860SPS 1-Ch Delta-Sigma ADC With PGA, Oscillator, Vref, Comparator, and I2C

Pricing (USD)

Quantity	Unit Price
1 — 99	4.048
100 — 249	3.3
250 — 999	2.594
1,000 +	1.27

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Minimum Operating Temperature	-40
Maximum Operating Temperature	125
Factory Pack Quantity	3,000
Package | Pins	X2QFN (RUG) | 10

For more information, please refer to datasheet

Documents

ADS1114IRUGR Datasheet

More Information

The ADS1113, ADS1114, and ADS1115 devices (ADS111x) are precision, low-power, 16-bit, I2C-compatible, analog-to-digital converters (ADCs) offered in an ultra-small, leadless, X2QFN-10 package, and a VSSOP-10 package. The ADS111x devices incorporate a low-drift voltage reference and an oscillator. The ADS1114 and ADS1115 also incorporate a programmable gain amplifier (PGA) and a digital comparator. These features, along with a wide operating supply range, make the ADS111x well suited for power- and space-constrained, sensor measurement applications.
