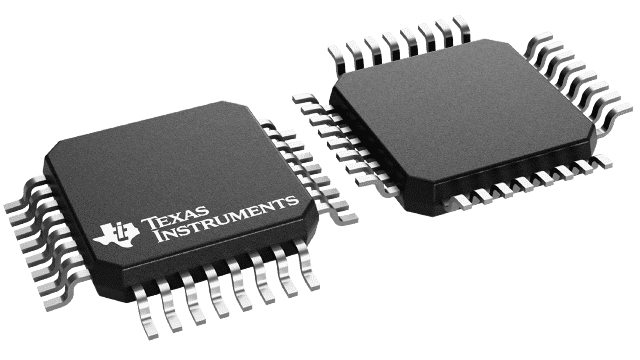

ADS131A04IPBSR Texas Instruments - Yeehing Electronics

24-bit 128-kSPS 4-channel simultaneous-sampling delta-sigma ADC

Pricing (USD)

Quantity	Unit Price
1 — 99	7.391
100 — 249	6.026
250 — 999	4.736
1,000 +	2.81

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Minimum Operating Temperature	-40
Maximum Operating Temperature	125
Factory Pack Quantity	1,000
Package | Pins	TQFP (PBS) | 32

For more information, please refer to datasheet

Documents

ADS131A04IPBSR Datasheet

More Information

The ADS131A02 and ADS131A04 devices are two- and four-channel, simultaneous-sampling, 24-bit, delta-sigma (ΔΣ), analog-to-digital converters (ADCs). The wide dynamic range, with scalable data rates up to 128 kSPS, and internal fault monitors make the ADS131A02 or ADS131A04 a good choice when designing for energy monitoring, grid protection, and control applications. The ADC inputs can be independently and directly interfaced to a resistor-divider network, a current transformer, or a Rogowski coil to measure voltage or current. Flexible power-supply options, including an internal negative charge pump, are available to maximize the effective resolution for high dynamic range applications.
