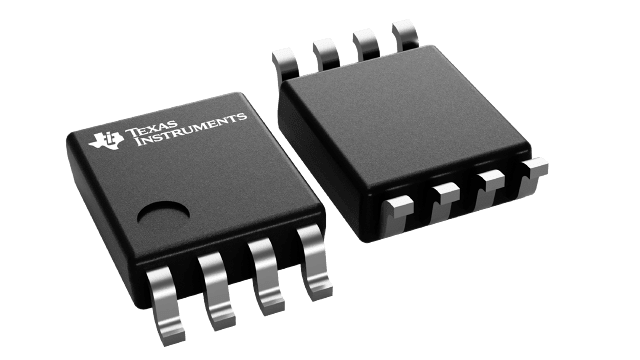

ADS7041IDCUT Texas Instruments - Yeehing Electronics

Ultra-low power and ultra-small size SAR ADC, 10 bit, 1 MSPS, single ended

Pricing (USD)

Quantity	Unit Price
1 — 99	1.6
100 — 249	1.402
250 — 999	0.983
1,000 +	0.55

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

ADS7041IDCUT Datasheet

More Information

The ADS7041 is a 10-bit, 1-MSPS, analog-to-digital converter (ADC). The device supports a wide analog input voltage range (1.65 V to 3.6 V) and includes a capacitor-based, successive-approximation register (SAR) ADC with an inherent sample-and-hold circuit. The SPI-compatible serial interface is controlled by the CS and SCLK signals. The input signal is sampled with the CS falling edge and SCLK is used for conversion and serial data output. The device supports a wide digital supply range (1.65 V to 3.6 V), enabling direct interface to a variety of host controllers. The ADS7041 complies with the JESD8-7A standard for a normal DVDD range (1.65 V to 1.95 V).
