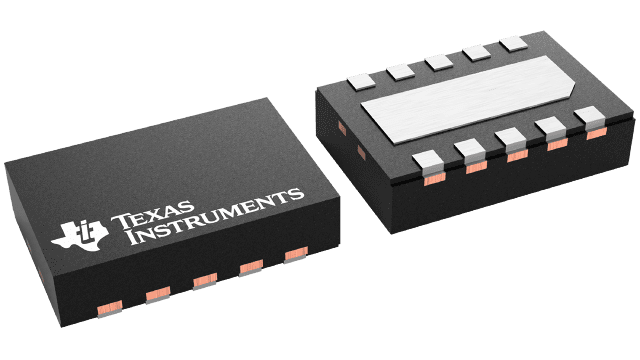

ADS7142QDQCRQ1 Texas Instruments - Yeehing Electronics

Automotive 2-channel 12-bit 140-kSPS I2C-compatible ADC with programmable threshold and host wake-up

Pricing (USD)

Quantity	Unit Price
1 — 99	2.175
100 — 249	1.796
250 — 999	1.29
1,000 +	0.68

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

ADS7142QDQCRQ1 Datasheet

More Information

The ADS7142-Q1 is a 12-bit, 140-kSPS successive-approximation register (SAR) analog-to-digital converter (ADC) that can autonomously monitor signals while maximizing system power, reliability, and performance. The device implements event-triggered interrupts per channel using a digital window comparator with programmable high and low thresholds, hysteresis, and event counter. The device includes a dual-channel analog multiplexer in front of a SAR ADC followed by an internal data buffer for converting and capturing data from sensors.
