Description

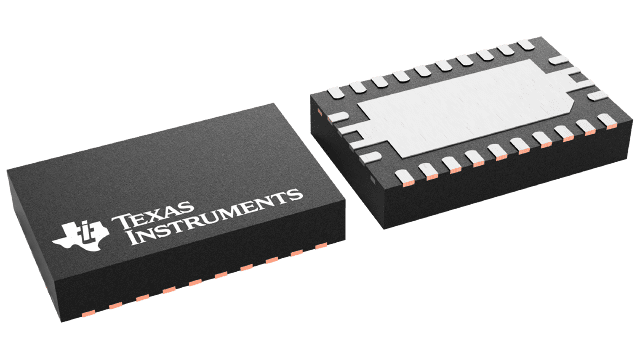

CLXC8T245QRHLRQ1 Texas Instruments - Yeehing Electronics
Automotive 8-bit dual-supply wide voltage level translating transceiver with tri-state output
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.378 |
| 100 — 249 | 1.138 |
| 250 — 999 | 0.817 |
| 1,000 + | 0.43 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| CLXC8T245QRHLRQ1 Datasheet |
More Information
The SN74LXC8T245-Q1 is an 8-bit, dual-supply noninverting bidirectional voltage level translation device. Ax pins and control pins (DIR and OE) are referenced to VCCA logic levels, and Bx pins are referenced to VCCB logic levels. The A port is able to accept I/O voltages ranging from 1.1 V to 5.5 V, while the B port can accept I/O voltages from 1.1 V to 5.5 V. A high on DIR allows data transmission from A to B and a low on DIR allows data transmission from B to A when OE is set to low. When OE is set to high, both Ax and Bx pins are in the high-impedance state. See Device Functional Modes for a summary of the operation of the control logic.
