DAC122S085CISDX/NOPB Texas Instruments - Yeehing Electronics

12-Bit Micro Power DUAL Digital-to-Analog Converter with Rail-to-Rail Output

Pricing (USD)

Quantity	Unit Price
1 — 99	3.519
100 — 249	3.083
250 — 999	2.162
1,000 +	1.22

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Minimum Operating Temperature	-40
Maximum Operating Temperature	105
Factory Pack Quantity	4,500

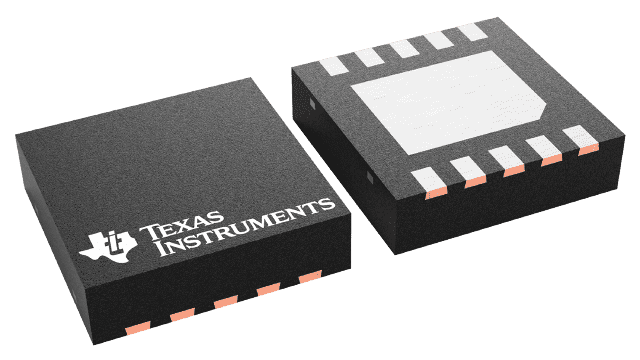

Package | Pins	WSON (DSC) | 10

For more information, please refer to datasheet

Documents

DAC122S085CISDX/NOPB Datasheet

More Information

The DAC122S085 is a full-featured, general purpose DUAL 12-bit voltage-output digital-to-analog converter (DAC) that can operate from a single +2.7V to 5.5V supply and consumes 0.6 mW at 3V and 1.6 mW at 5V. The DAC122S085 is packaged in 10-lead SON and VSSOP packages. The 10-lead SON package makes the DAC122S085 the smallest DUAL DAC in its class. The on-chip output amplifier allows rail-to-rail output swing and the three wire serial interface operates at clock rates up to 40 MHz over the entire supply voltage range. Competitive devices are limited to 25 MHz clock rates at supply voltages in the 2.7V to 3.6V range. The serial interface is compatible with standard SPI, QSPI, MICROWIRE and DSP interfaces.
