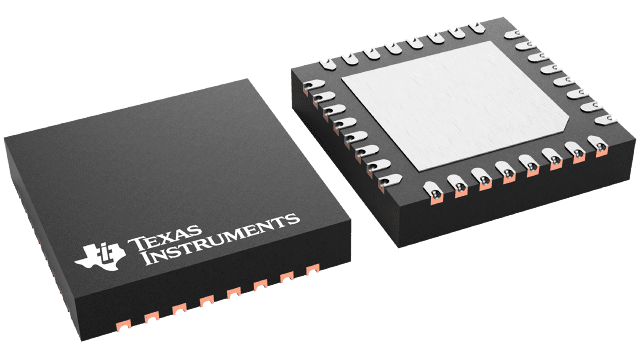

DAC61402RHBR Texas Instruments - Yeehing Electronics

Dual-channel, 12-bit, ±20-V-range, buffered-output DAC with precision internal reference

Pricing (USD)

Quantity	Unit Price
1 — 99	10.286
100 — 249	8.385
250 — 999	6.591
1,000 +	3.91

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

DAC61402RHBR Datasheet

More Information

The 16-bit DAC81402 and 12-bit DAC61402 (DACx1402) are pin-compatible, dual-channel, buffered, high-voltage-output, digital-to-analog converters (DACs). These devices include a low-drift, 2.5-V internal reference that eliminates the need for an external precision reference in most applications. The devices are specified monotonic and provide high linearity of ±1 LSB INL. Additionally, the devices implement per channel sense pins that eliminate IR drops and sense up to ±12 V of ground bounce.
