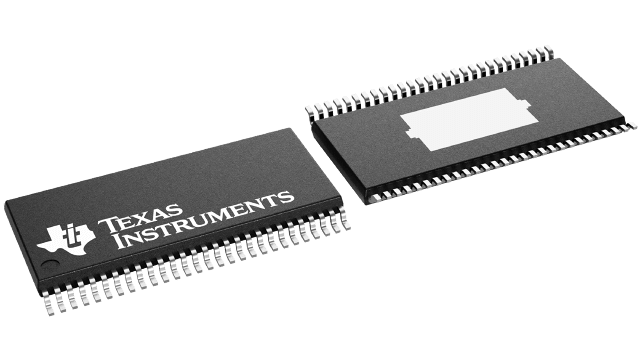

DRV8302DCAR Texas Instruments - Yeehing Electronics

65-V max 3-phase gate driver with buck regulator, current shunt amplifiers & hardware interface

Pricing (USD)

Quantity	Unit Price
1 — 99	4.464
100 — 249	3.639
250 — 999	2.86
1,000 +	1.70

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

DRV8302DCAR Datasheet

More Information

The DRV8302 is a gate driver IC for three phase motor drive applications. It provides three half bridge drivers, each capable of driving two N-channel MOSFETs. The device supports up to 1.7-A source and 2.3-A peak current capability. The DRV8302 can operate off of a single power supply with a wide range from 8-V to 60-V. It uses a bootstrap gate driver architecture with trickle charge circuitry to support 100% duty cycle. The DRV8302 uses automatic hand shaking when the high side or low side MOSFET is switching to prevent current shoot through. Integrated VDS sensing of the high and low side MOSFETs is used to protect the external power stage against overcurrent conditions.
