Description

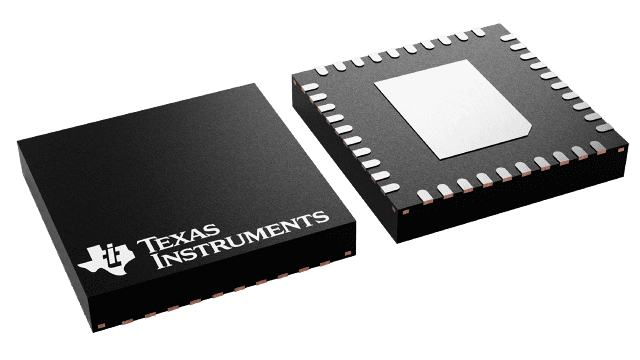

DRV8304SRHAR Texas Instruments - Yeehing Electronics
40-V max 3-phase smart gate driver with current shunt amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.182 |
| 100 — 249 | 1.912 |
| 250 — 999 | 1.34 |
| 1,000 + | 0.76 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| DRV8304SRHAR Datasheet |
More Information
The DRV8304 device is an integrated gate driver for 3-phase brushless DC (BLDC) motors applications for 12-V and 24-V DC rails. These applications include field-oriented control (FOC), sinusoidal current control, and trapezoidal current control of BLDC motors. The device integrates three current-sense amplifiers (CSA) for sensing the phase currents of BLDC motors for optimum FOC and current-control system implementation. An AUTOCAL feature automatically calibrates the CSA offset error for accurate current sensing.
