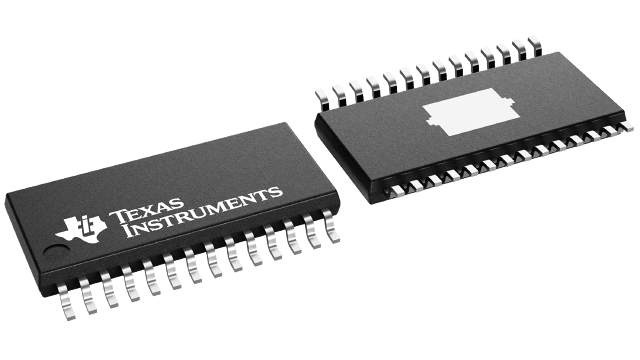

DRV8812PWP Texas Instruments - Yeehing Electronics

45-V, 1.6-A bipolar stepper or dual H-bridge motor driver with current regulation

Pricing (USD)

Quantity	Unit Price
1 — 99	3.857
100 — 249	3.144
250 — 999	2.471
1,000 +	1.47

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

DRV8812PWP Datasheet

More Information

The DRV8812 provides an integrated motor driver solution for printers, scanners, and other automated equipment applications. The device has two H-bridge drivers, and can drive a bipolar stepper motor or two DC motors. The output driver block for each consists of N-channel power MOSFET’s configured as full H-bridges to drive the motor windings. The DRV8812 is capable of driving up to 1.6-A of output current (with proper heatsinking, at 24 V and 25°C).
