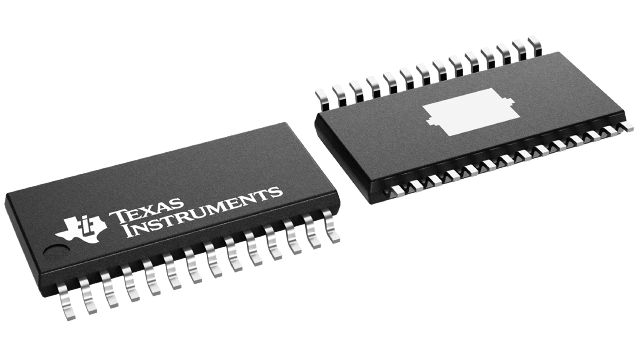

DRV8824QPWPRQ1 Texas Instruments - Yeehing Electronics

Automotive, 47-V, 1.6-A, bipolar stepper motor driver with current regulation & 1/32 microstepping

Pricing (USD)

Quantity	Unit Price
1 — 99	3.721
100 — 249	3.26
250 — 999	2.286
1,000 +	1.29

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

DRV8824QPWPRQ1 Datasheet

More Information

The DRV8824-Q1 provides an integrated motor driver solution for automotive applications. The device has two H-bridge drivers and a microstepping indexer, and is intended to drive a bipolar stepper motor. The output driver block for each consists of N-channel power MOSFET’s configured as full H-bridges to drive the motor windings. The DRV8824-Q1 is capable of driving up to 1.6-A of output current (with proper heatsinking, at 24 V and 25°C).
