Texas Instruments
DRV8850RGYT
DRV8850RGYT
Regular price
$0.43 USD
Regular price
Sale price
$0.43 USD
Unit price
per
Couldn't load pickup availability

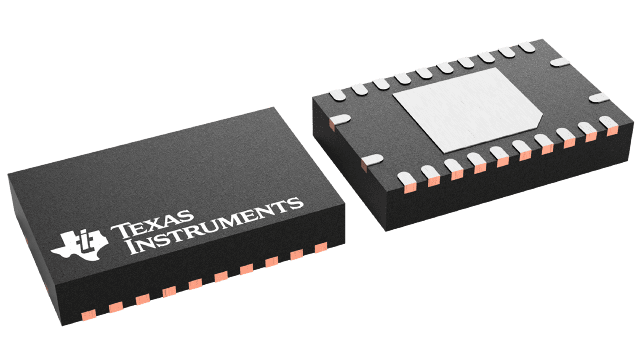

DRV8850RGYT Texas Instruments - Yeehing Electronics
7-V, 8-A H-bridge motor driver with LDO and current feedback
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.362 |
| 100 — 249 | 1.125 |
| 250 — 999 | 0.808 |
| 1,000 + | 0.43 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Minimum Operating Temperature | -40 |
| Maximum Operating Temperature | 85 |
| Factory Pack Quantity | 250 |
| Package | Pins | VQFN (RGY) | 24 |
For more information, please refer to datasheet
Documents
| DRV8850RGYT Datasheet |
More Information
The DRV8850 device provides a motor driver plus LDO voltage regulator solution for consumer products, toys, and other low-voltage or battery-powered motion-control applications. The device has one H-bridge driver to drive a DC motor, a voice-coil actuator, one winding of a stepper motor, a solenoid, or other devices. The output driver block consists of N-channel power MOSFETs configured as an H-bridge to drive the load. An internal charge pump generates the needed gate-drive voltages.
