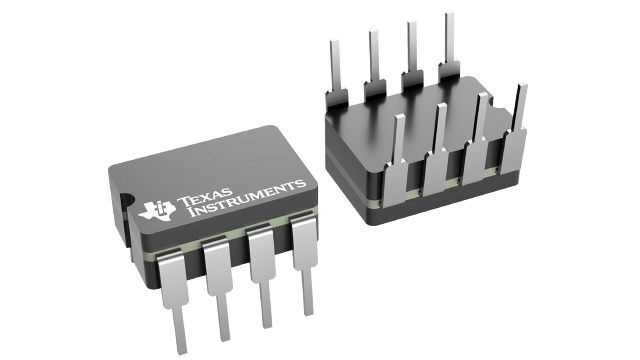

LM101AJ Texas Instruments - Yeehing Electronics

Single, 40-V, 1-MHz operational amplifier

Pricing (USD)

Quantity	Unit Price
1 — 99	16.726
100 — 249	14.61
250 — 999	11.265
1,000 +	8.06

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Operational Amplifiers - Op Amps
RoHS	N
Mounting Style	Through Hole
Package / Case	CDIP-8
Supply Voltage - Max	44 V
Number of Channels	1 Channel
GBP - Gain Bandwidth Product	1 MHz
SR - Slew Rate	0.5 V/us
CMRR - Common Mode Rejection Ratio	80 dB to 96 dB
Ib - Input Bias Current	75 nA
Vos - Input Offset Voltage	2 mV
Supply Voltage - Min	10 V
Operating Supply Current	3 mA
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 125 C
Shutdown	No Shutdown
Series	LM101A-N
Packaging	Tube
Height	4.57 mm
Input Type	Rail-to-Rail
Length	10.16 mm
Product	Operational Amplifiers
Supply Type	Dual
Technology	Bipolar
Width	7.87 mm
Brand	Texas Instruments
Dual Supply Voltage	+/- 9 V, +/- 12 V, +/- 15 V, +/- 18 V
en - Input Voltage Noise Density	15 nV/sqrt Hz
In - Input Noise Current Density	0.1 pA/sqrt Hz
Maximum Dual Supply Voltage	+/- 22 V
Minimum Dual Supply Voltage	+/- 5 V
Operating Supply Voltage	10 V to 44 V
Pd - Power Dissipation	1000 mW
Product Type	Op Amps - Operational Amplifiers
Factory Pack Quantity	40
Subcategory	Amplifier ICs
Voltage Gain dB	104.08 dB

For more information, please refer to datasheet

Documents

LM101AJ Datasheet

More Information

The LM101A series are general purpose operational amplifiers which feature improved performance over industry standards like the LM709. Advanced processing techniques make possible an order of magnitude reduction in input currents, and a redesign of the biasing circuitry reduces the temperature drift of input current.
