Description

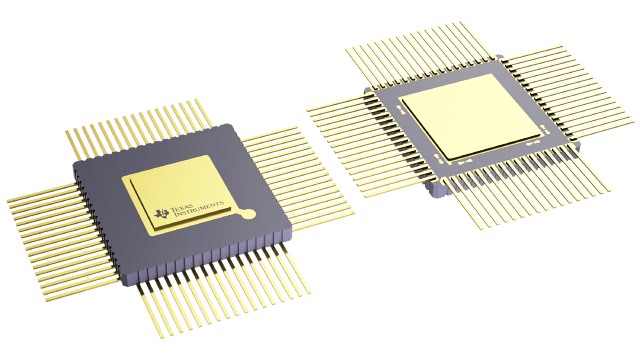

LM98640W-MPR Texas Instruments - Yeehing Electronics
Dual channel, 14-bit, 40 MSPS analog front end with LVDS output
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2464.0 |
| 100 — 249 | 2332.0 |
| 250 — 999 | 2200.0 |
| 1,000 + | 1724.80 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| LM98640W-MPR Datasheet |
More Information
The LM98640QML-SP is a fully integrated, high performance 14-Bit, 5-MSPS to 40-MSPS signal processing solution. The Serial LVDS output format performs well during single event exposure, preventing data loss. The LM98640QML-SP has an adaptive power scaling feature to optimize power consumption based on the operating frequency and amount of gain required. High-speed signal throughput is achieved with an innovative architecture utilizing Correlated Double Sampling (CDS), typically employed with CCD arrays, or Sample and Hold (S/H) inputs (for CIS and CMOS image sensors). The sampling edges are programmable to a resolution of 1/64th of a pixel period. Both the CDS and S/H have a programmable gain of either 0 dB or 6 dB. The signal paths utilize two ±8-bit offset correction DACs for coarse and fine offset correction, and 8-bit Programmable Gain Amplifiers (PGA) that can be programmed independently for each input. The signals are then routed to two on chip 14-bit 40-MHz high performance analog-to-digital converters (ADC). The fully differential processing channel provides exceptional noise immunity, having a very low noise floor of –79 dB at 1x gain.
