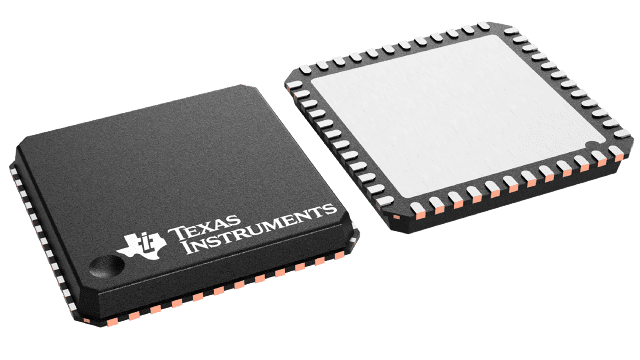

LMX2694SRTCTEP Texas Instruments - Yeehing Electronics

Enhanced product 15-GHz RF synthesizer with phase synchronization

Pricing (USD)

Quantity	Unit Price
1 — 99	426.378
100 — 249	385.945
250 — 999	374.918
1,000 +	257.30

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

LMX2694SRTCTEP Datasheet

More Information

The LMX2694-EP device is a high-performance, wideband phase-locked loop (PLL) with an integrated voltage-controlled oscillator (VCO) and voltage regulators that can output any frequency between 39.3 MHz and 15.1 GHz without a doubler, eliminating the need for ½ harmonic filters. The VCO on this device covers an entire octave to complete the frequency coverage down to 39.3 MHz. The high-performance PLL, with a –236-dBc/Hz figure of merit and high-phase detector frequency, can achieve very low in-band noise and integrated jitter.
