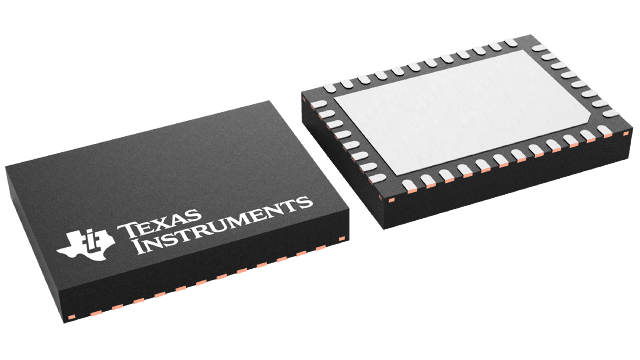

MCF8316A1VRGFR Texas Instruments - Yeehing Electronics

40-V max, 8-A peak, sensorless FOC control 3-phase BLDC motor driver

Pricing (USD)

Quantity	Unit Price
1 — 99	3.151
100 — 249	2.761
250 — 999	1.936
1,000 +	1.09

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

MCF8316A1VRGFR Datasheet

More Information

The MCF8316A provides a single-chip, code-free sensorless FOC solution for customers driving speed-controlled 12- to 24-V brushless-DC motors (BLDC) or Permanent Magnet Synchronous motor (PMSM) up to 8-A peak current. The MCF8316A integrates three 1/2-H bridges with 40-V absolute maximum capability and a very low RDS(ON) of 95 mΩ(high-side + low-side). Power management features of an adjustable buck regulator and LDO generate the 3.3-V or 5.0-V voltage rails for the device and can be used to power external circuits.
