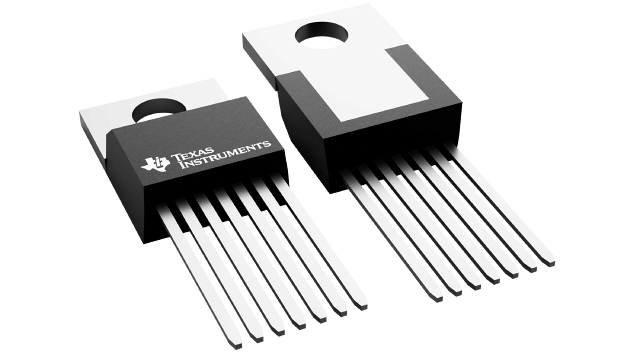

OPA548T-1 Texas Instruments - Yeehing Electronics

High-voltage, high-current, wide-output-voltage-swing power operational amplifier

Pricing (USD)

Quantity	Unit Price
1 — 99	13.016
100 — 249	11.369
250 — 999	8.766
1,000 +	5.49

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Operational Amplifiers - Op Amps
RoHS	Y
Mounting Style	Through Hole
Package / Case	TO-220-7
Supply Voltage - Max	60 V
Output Current per Channel	3 A
Number of Channels	1 Channel
GBP - Gain Bandwidth Product	1 MHz
SR - Slew Rate	10 V/us
CMRR - Common Mode Rejection Ratio	80 dB to 95 dB
Ib - Input Bias Current	500 nA
Vos - Input Offset Voltage	10 mV
Supply Voltage - Min	8 V
Operating Supply Current	17 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Shutdown	Shutdown
Series	OPA548
Packaging	Tube
Amplifier Type	High Output Current Amplifier
Features	Adj Current Limit, Shutdown
Height	8.38 mm
Input Type	Rail-to-Rail
Length	10.17 mm
Product	Operational Amplifiers
Supply Type	Single, Dual
Width	4.58 mm
Brand	Texas Instruments
Dual Supply Voltage	+/- 5 V, +/- 9 V, +/- 12 V
en - Input Voltage Noise Density	90 nV/sqrt Hz
In - Input Noise Current Density	0.2 pA/sqrt Hz
Maximum Dual Supply Voltage	+/- 30 V
Minimum Dual Supply Voltage	+/- 4 V
Operating Supply Voltage	8 V to 60 V, +/- 4 V to +/- 30 V
Product Type	Op Amps - Operational Amplifiers
Factory Pack Quantity	50
Subcategory	Amplifier ICs
Vcm - Common Mode Voltage	Negative Rail - 0.1 V to Positive Rail - 3 V
Voltage Gain dB	98 dB
Unit Weight	0.029320 oz

For more information, please refer to datasheet

Documents

OPA548T-1 Datasheet

More Information

The OPA548 device is a low-cost, high-voltage, and high-current operational amplifier that is designed to drive a wide variety of loads. A laser-trimmed, monolithic, integrated circuit provides excellent low-level signal accuracy and high-output voltage and current.
