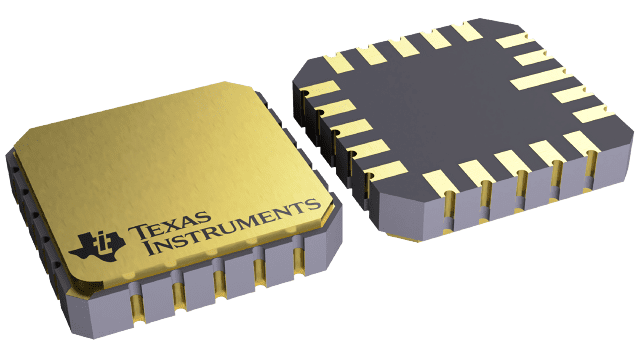

SNJ55LBC172FK Texas Instruments - Yeehing Electronics
Quadruple Low-Power Differential Line Driver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 58.247 |
| 100 — 249 | 51.775 |
| 250 — 999 | 42.562 |
| 1,000 + | 26.65 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| SNJ55LBC172FK Datasheet |
More Information
The SN55LBC172 is a monolithic quadruple differential line driver with 3-state outputs. This device is designed to meet the requirements of the Electronics Industry Association (EIA) standard RS-485. The SN55LBC172 is optimized for balanced multipoint bus transmission at data rates up to and exceeding 10 million bits per second. The driver features wide positive and negative common-mode output voltage ranges, current limiting, and thermal-shutdown circuitry, making it suitable for party-line applications in noisy environments. The device is designed using the LinBiCMOS process, facilitating ultralow power consumption and inherent robustness.
