TCA5013ZAHR Texas Instruments - Yeehing Electronics

Smart card interface IC for 1 user card + 3 SAMs

Pricing (USD)

Quantity	Unit Price
1 — 99	3.157
100 — 249	2.574
250 — 999	2.023
1,000 +	0.99

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Interface - Specialized
RoHS	Y
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Series	TCA5013
Brand	Texas Instruments
Moisture Sensitive	Yes
Product Type	Interface - Specialized
Protocol Supported	Smartcard ISO7816-3/ ISO7816-10
Factory Pack Quantity	3000
Subcategory	Interface ICs
Unit Weight	0.001873 oz

For more information, please refer to datasheet

Documents

TCA5013ZAHR Datasheet

More Information

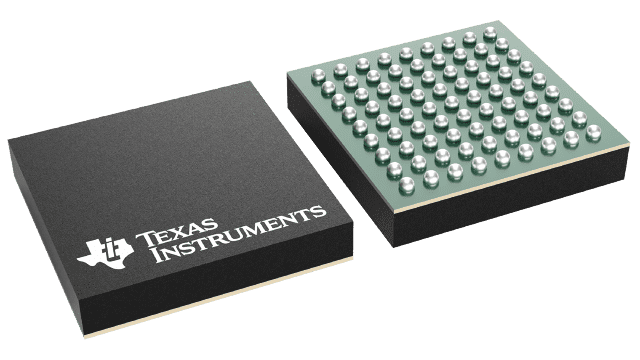

TCA5013 is a smartcard interface IC that is targeted for use in Point of Sale (POS) terminals. The device enables POS terminals to interface with EMV4.3, ISO7816-3 and ISO7816-10 compliant cards. It supports up to 3 Secure Access Module (SAM) cards in addition to 1 user card. It operates from a single supply and generates all the card voltages. The device is controlled by a standard I2C interface and is capable of card activation and deactivation per EMV4.3 and ISO7816-3 standards. In addition it also supports ISO7816-10 synchronous cards. It has a 4-byte FIFO that stores the ATR (Answer to Reset) sequence in ISO7816-10 type 1 cards. Synchronous cards (ISO7816-10 type 1 and type 2) can be set up for automatic activation or manual activation. The device has multiple power saving modes and also supports power saving in the smartcard itself by “clock stop” or lowering clock frequency to lowest allowable levels per the ISO7816 - 3 standard. TCA5013 has IEC 61000-4-2 8kV contact discharge on all pins that interface with smartcards. This enables the system to be resistant to ESD in the field without the need for external ESD devices. It is available in an 5 mm x 5 mm BGA package. The pin out of the device is such that all the IO pins are securely surrounded by other pins. This prevents the secure pins from being probed during device operation.
