Texas Instruments
TLV62585RWTT
TLV62585RWTT
Regular price
$0.21 USD
Regular price
Sale price
$0.21 USD
Unit price
per
Couldn't load pickup availability

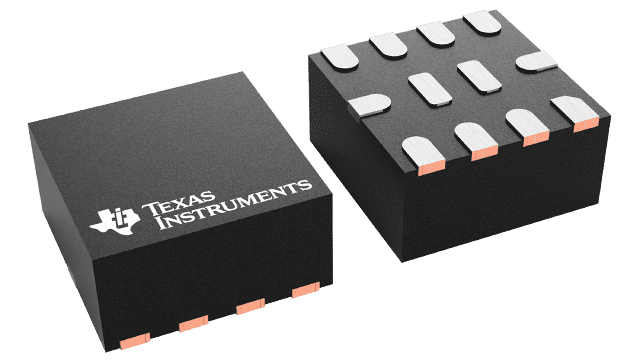

TLV62585RWTT Texas Instruments - Yeehing Electronics
2.5V-5.5V input, 3-A high efficiency step-down converter in 2x2 QFN or SOT563 package
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.726 |
| 100 — 249 | 0.559 |
| 250 — 999 | 0.411 |
| 1,000 + | 0.21 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-HR-12 |
| Output Voltage | 0.6 V to 5.5 V |
| Output Current | 3 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 5.5 V |
| Topology | Buck |
| Input Voltage MIN | 2.5 V |
| Switching Frequency | 1.5 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Series | TLV62585 |
| Packaging | Reel |
| Input Voltage | 2.5 V to 5.5 V |
| Operating Temperature Range | - 40 C to + 125 C |
| Quiescent Current | 35 uA |
| Type | Synchronous Buck Converter |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Development Kit | TLV62585EVM-824 |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 2.5 V |
| Unit Weight | 0.000300 oz |
For more information, please refer to datasheet
Documents
| TLV62585RWTT Datasheet |
More Information
The TLV62585 device is a high-frequency synchronous step-down converter optimized for compact solution size and high efficiency. The device integrates switches capable of delivering an output current up to 3 A. At medium to heavy loads, the converter operates in pulse width modulation (PWM) mode with typical 1.5-MHz switching frequency. At light load, the device automatically enters Power Save Mode (PSM) to maintain high efficiency over the entire load current range. In shutdown, the current consumption is reduced to less than 2 µA.
