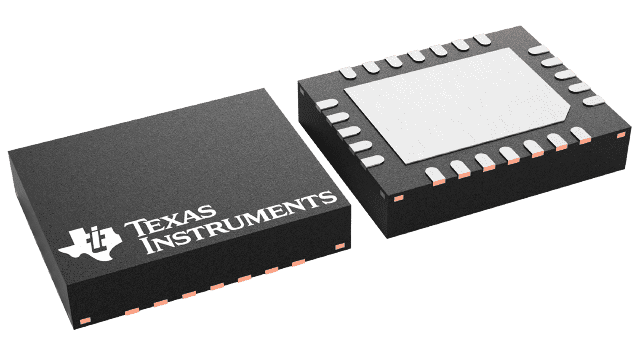

TPS272C45CRHFR Texas Instruments - Yeehing Electronics
36-V, 45-mΩ, 3-A, 2-ch, Industrial high-side switch with adjustable current limit
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.04 |
| 100 — 249 | 3.54 |
| 250 — 999 | 2.482 |
| 1,000 + | 1.60 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| TPS272C45CRHFR Datasheet |
More Information
The TPS272C45 is a dual-channel smart high-side switch designed to meet the requirements of industrial control systems. The low on-resistance (RDS(on) of 45 mΩ) minimizes device power dissipation driving a wide range (100 mA to 3 A) of output load current. The device provides an additional low voltage supply (3.3 V to 5 V) input pin to minimize no-load power dissipation. The device integrates protection features such as thermal shut down, output clamp, and overcurrent limit. These features improve system robustness during fault events such as short circuit.
