Texas Instruments
TPS386000RGPR
TPS386000RGPR
Regular price
$0.64 USD
Regular price
Sale price
$0.64 USD
Unit price
per
Couldn't load pickup availability
TPS386000RGPR Texas Instruments - Yeehing Electronics
Open-drain, quad-supply voltage supervisors with programmable delay & watchdog timer
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.041 |
| 100 — 249 | 1.685 |
| 250 — 999 | 1.211 |
| 1,000 + | 0.64 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Supervisory Circuits |
| RoHS | Y |
| Type | Voltage Supervisory |
| Mounting Style | SMD/SMT |

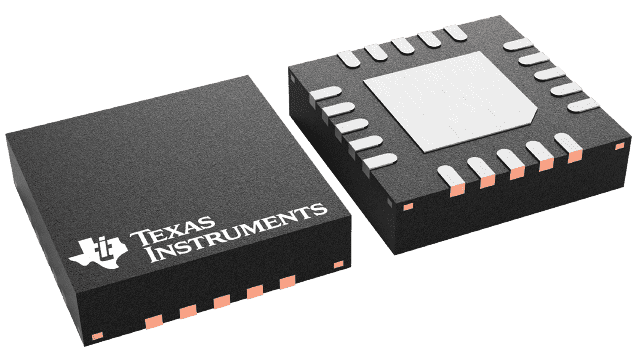

| Package / Case | QFN-20 |
| Threshold Voltage | Adjustable |
| Number of Inputs Monitored | 4 Input |
| Output Type | Active-low,Open-drain |
| Manual Reset | Manual Reset |
| Watchdog Timers | Watchdog |
| Battery Backup Switching | No Backup |
| Supply Voltage - Max | 6.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Accuracy | 0.25 % |
| Series | TPS386000 |
| Packaging | Reel |
| Features | Active Low Enable, Manual Reset, Negative Voltage Monitoring, Over Voltage Sense, Watchdog Timer |
| Operating Temperature Range | - 40 C to + 125 C |
| Brand | Texas Instruments |
| Chip Enable Signals | Chip Enable |
| Development Kit | TPS386040EVM |
| Moisture Sensitive | Yes |
| Operating Supply Current | 11 uA |
| Power Fail Detection | No |
| Product Type | Supervisory Circuits |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 1.8 V |
| Unit Weight | 0.002469 oz |
For more information, please refer to datasheet
Documents
| TPS386000RGPR Datasheet |
More Information
The TPS3860x0 family of supply voltage supervisors (SVSs) can monitor four power rails that are greater than 0.4 V and one power rail less than 0.4 V (including negative voltage) with a 0.25% (typical) threshold accuracy. Each of the four supervisory circuits (SVS-n) assert a RESETn or RESETn output signal when the SENSEm input voltage drops below the programmed threshold. With external resistors, the threshold of each SVS-n can be programmed (where n = 1, 2, 3, 4 and m = 1, 2, 3, 4L, 4H).
