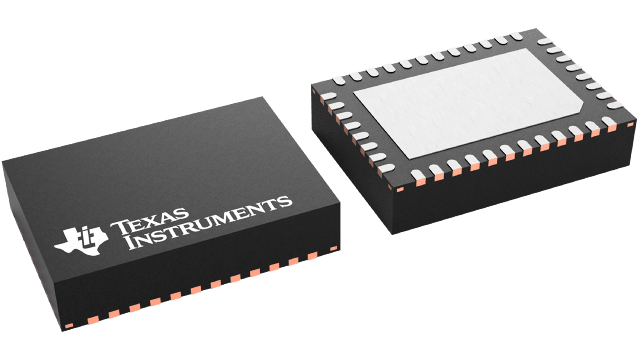

TPS546C20ARVFT Texas Instruments - Yeehing Electronics

4.5-V to 18-V, stackable 35-A synchronous SWIFT™ buck converter with PMBus and pin-strapping

Pricing (USD)

Quantity	Unit Price
1 — 99	8.984
100 — 249	7.847
250 — 999	6.051
1,000 +	3.79

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	LQFN-40
Output Voltage	350 mV to 5.5 V
Output Current	35 A
Number of Outputs	1 Output
Input Voltage MAX	18 V
Topology	Buck
Input Voltage MIN	4.5 V
Switching Frequency	200 kHz to 1 MHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Series	TPS546C20A
Packaging	Reel
Input Voltage	4.5 V to 18 V
Operating Temperature Range	- 40 C to + 125 C
Type	Stackable Synchronous Buck Converter
Brand	Texas Instruments
Shutdown	Shutdown
Moisture Sensitive	Yes
Operating Supply Current	7.7 mA
Product Type	Switching Voltage Regulators
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs
Supply Voltage - Min	4.5 V
Tradename	SWIFT

For more information, please refer to datasheet

Documents

TPS546C20ARVFT Datasheet

More Information

The TPS546C20A devices are PMBus 1.3 Compliant, non-isolated DC/DC converters with integrated FETs, capable of high-frequency operation and 35-A current output from a 7-mm × 5-mm package. Two TPS546C20A devices can be paralleled together to provide up to 70-A load. Current sensing is realized by sampling a small portion of the power stage current and independent on the device temperature. High-frequency, low-loss switching, provided by an integrated NexFET power stage and optimized drivers, allows for very high-density power solutions. The PMBus interface enables the AVS functions through VOUT_COMMAND, flexible converter configuration, as well as key parameters monitoring including output voltage, current, and internal die temperature. Response to fault conditions can be set to either restart, latch-off or ignore depending on system requirements.
