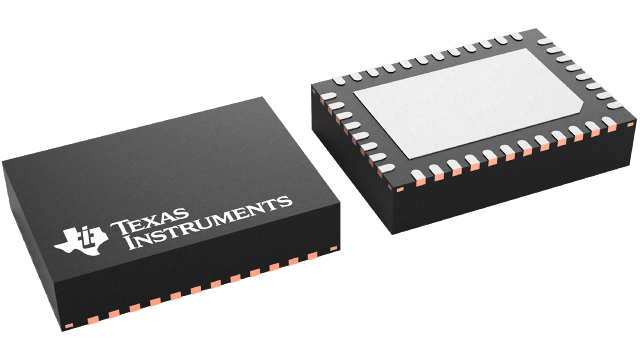

TPS546D24ARVFR Texas Instruments - Yeehing Electronics
2.95-V to 16-V, stackable 40-A synchronous SWIFT™ buck converter with pin-strapping and PMBus
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 8.87 |
| 100 — 249 | 7.42 |
| 250 — 999 | 6.18 |
| 1,000 + | 5.48 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| TPS546D24ARVFR Datasheet |
More Information
The TPS546D24A is a highly integrated, non-isolated DC/DC converter capable of high frequency operation and 40-A current output from a 7-mm × 5-mm package. Two, three, and four TPS546D24A devices can be interconnected to provide up to 160 A on a single output. The device has an option to overdrive the internal 5-V LDO with an external 5-V supply via the VDD5 pin to improve efficiency and reduce power dissipation of the converter.
