Texas Instruments
TPS61089RNRR
TPS61089RNRR
Regular price
$0.42 USD
Regular price
Sale price
$0.42 USD
Unit price
per
Couldn't load pickup availability

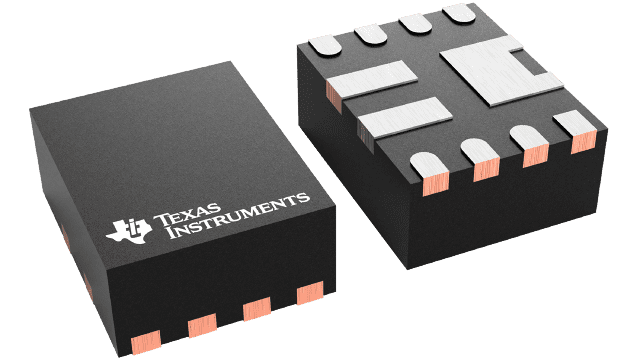

TPS61089RNRR Texas Instruments - Yeehing Electronics
12.6-V, 7-A Fully-Integrated Synchronous Boost Converters in 2.0-mm x 2.5-mm VQFN Package
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.344 |
| 100 — 249 | 1.11 |
| 250 — 999 | 0.797 |
| 1,000 + | 0.42 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-11 |
| Output Voltage | 4.5 V to 12.6 V |
| Output Current | 11.4 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 12 V |
| Topology | Boost |
| Input Voltage MIN | 2.7 V |
| Switching Frequency | 200 kHz to 2.2 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | TPS61089 |
| Packaging | Reel |
| Input Voltage | 2.7 V to 12 V |
| Operating Temperature Range | - 40 C to + 85 C |
| Type | Synchronous Boost Converter |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Operating Supply Current | 10 uA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 2.7 V |
For more information, please refer to datasheet
Documents
| TPS61089RNRR Datasheet |
More Information
The TPS61089x represents the TPS61089 and the TPS610891. The TPS61089x is a fully-integrated synchronous boost converter with a 19-mΩ main power switch and a 27-mΩ rectifier switch. The device provides a high-efficiency and small-size power solution for portable equipment. The TPS61089x features a wide input voltage range from 2.7 V to 12 V to support applications powered with single-cell or two-cell Lithium ion/polymer batteries. The TPS61089x has 7-A continuous switch current capability and provides output voltage up to 12.6 V.
