Texas Instruments
TPS61256YFFT
TPS61256YFFT
Regular price
$0.35 USD
Regular price
Sale price
$0.35 USD
Unit price
per
Couldn't load pickup availability

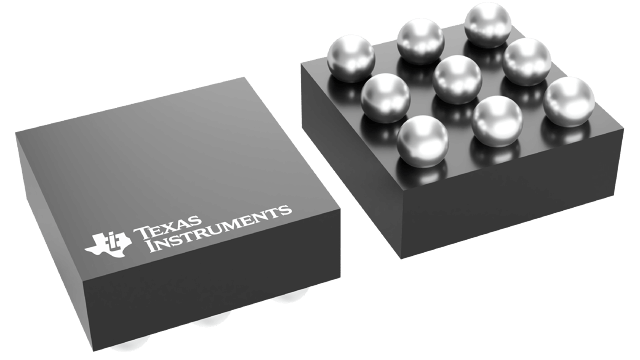

TPS61256YFFT Texas Instruments - Yeehing Electronics
3.5-MHz, 5-V, 900-mA load boost converter in 1.2-mm x 1.3-mm WCSP
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.124 |
| 100 — 249 | 0.929 |
| 250 — 999 | 0.667 |
| 1,000 + | 0.35 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-9 |
| Output Voltage | 5 V |
| Output Current | 2.15 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 4.85 V |
| Topology | Boost |
| Input Voltage MIN | 2.5 V |
| Switching Frequency | 3.5 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | TPS61256 |
| Packaging | Reel |
| Input Voltage | 2.5 V to 4.85 V |
| Operating Temperature Range | - 40 C to + 85 C |
| Product | Voltage Regulators |
| Type | Voltage Converter |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Operating Supply Current | 20 uA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 2.5 V |
| Unit Weight | 0.000067 oz |
For more information, please refer to datasheet
Documents
| TPS61256YFFT Datasheet |
More Information
The TPS6125x device provides a power supply solution for battery-powered portable applications. Intended for low-power applications, the TPS6125x supports up to 800-mA load current from a battery discharged as low as 2.65V and allows the use of low cost chip inductor and capacitors.
