Description
TPS62824DMQR Texas Instruments - Yeehing Electronics

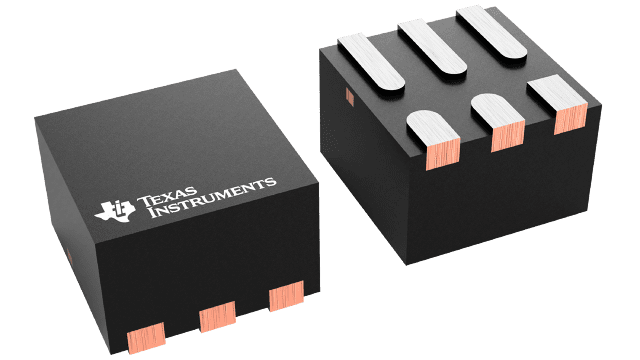

2.4-V to 5.5-V input, 1-A step-down converter with 1% accuracy in 1.5-mm x 1.5-mm QFN
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.333 |
| 100 — 249 | 0.226 |
| 250 — 999 | 0.175 |
| 1,000 + | 0.08 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| TPS62824DMQR Datasheet |
More Information
The TPS6282x is an easy-to-use synchronous step-down DC-DC converters family with a very low quiescent current of only 4 µA. Based on the DCS-Control topology, it provides a fast transient response. The internal reference allows to regulate the output voltage down to 0.6 V with a high feedback voltage accuracy of 1% over the junction temperature range of –40°C to 125°C. The family devices are pin-to-pin and BOM-to-BOM compatible. The entire solution requires a small 470-nH inductor, a single 4.7-µF input capacitor and two 10-µF or single 22-µF output capacitor.
