TPS65217CRSLT Texas Instruments - Yeehing Electronics
Power Management IC (PMIC) w/ 3 DC/DCs, 4 LDOs, linear battery charger & white LED driver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.721 |
| 100 — 249 | 3.849 |
| 250 — 999 | 3.025 |
| 1,000 + | 1.80 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| TPS65217CRSLT Datasheet |
More Information

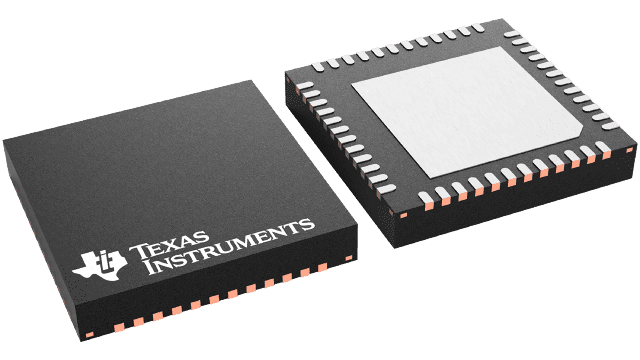

The TPS65217x is a single-chip power management IC (PMIC) specifically designed to power the AM335x ARM® Cortex®-A8 processor in portable and 5-V line-powered applications. The PMIC device provides a linear battery charger for single-cell Li-ion and Li-polymer batteries, dual-input power path, three step-down converters, four low-dropout (LDO) regulators, and a high-efficiency boost converter to power two strings of up to 10 LEDs each. The system can be supplied by any combination of USB port, 5-V AC adaptor, or Li-Ion battery. The device is characterized across a –40°C to +105°C temperature range which makes it suitable for industrial applications. Three high-efficiency 2.25-MHz step-down converters can providing the core voltage, memory, and I/O voltage for a system. The TPS65217x device comes in a 48-pin leadless package (6-mm × 6-mm VQFN) with a 0.4-mm pitch.
