Texas Instruments
TPS82130SILT
TPS82130SILT
Regular price
$1.34 USD
Regular price
Sale price
$1.34 USD
Unit price
per
Couldn't load pickup availability

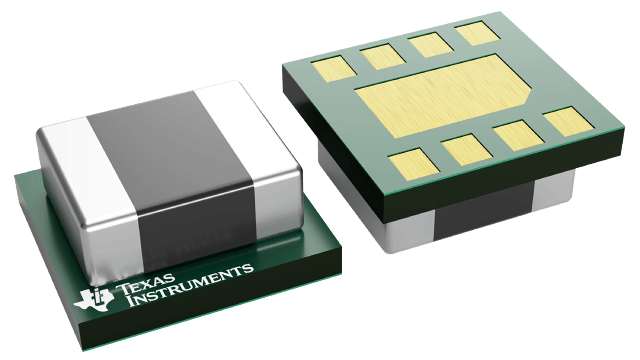

TPS82130SILT Texas Instruments - Yeehing Electronics
17-V input 3-A step-down converter module with integrated inductor
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.533 |
| 100 — 249 | 2.88 |
| 250 — 999 | 2.264 |
| 1,000 + | 1.34 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | SIL-8 |
| Output Voltage | 900 mV to 5 V |
| Output Current | 3 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 17 V |
| Topology | Buck |
| Input Voltage MIN | 3 V |
| Switching Frequency | 2 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Series | TPS82130 |
| Packaging | Reel |
| Input Voltage | 3 V to 17 V |
| Operating Temperature Range | - 40 C to + 125 C |
| Type | Step Down Converter MicroSiP Module |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Load Regulation | 0.12 %/A |
| Moisture Sensitive | Yes |
| Operating Supply Current | 20 uA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 3 V |
For more information, please refer to datasheet
Documents
| TPS82130SILT Datasheet |
More Information
The TPS82130 is a 17-V input 3-A step-down converter MicroSiP power module optimized for small solution size and high efficiency. The module integrates a synchronous step-down converter and an inductor to simplify design, reduce external components, and save PCB area. The low profile and compact solution is suitable for automated assembly by standard surface mount equipment.
