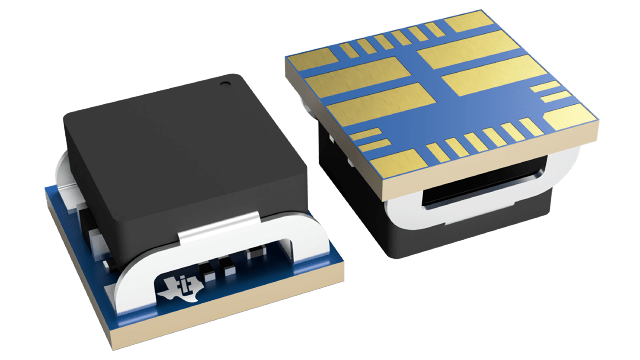

TPSM84424MOLR Texas Instruments - Yeehing Electronics
4.5V to 17V Input, 0.6V-10V Output, 4A Power Module in Compact 7.5x7.5mm Footprint
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 6.992 |
| 100 — 249 | 5.7 |
| 250 — 999 | 4.48 |
| 1,000 + | 2.66 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| TPSM84424MOLR Datasheet |
More Information
The TPSM84424 power module is an easy-to-use integrated power supply that combines a 4-A DC/DC converter with power MOSFETs, a shielded inductor and passives into a small form factor, QFM package. This power solution allows as few as six external components while maintaining the ability to adjust key parameters to meet specific design requirements. Ultra-fast transient response can be achieved by use of the TurboTrans™ feature. TurboTrans allows the transient response to be optimized for reduced output voltage deviation with less required output capacitance.
