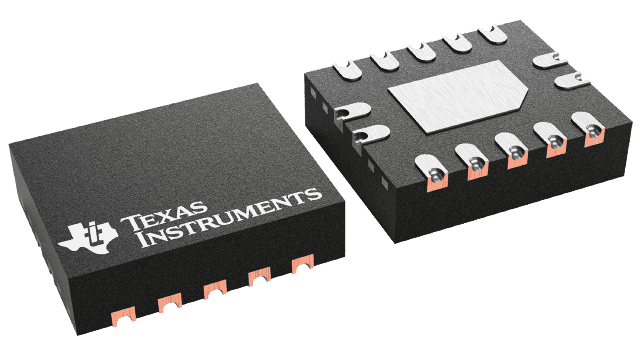

TXU0204QWBQARQ1 Texas Instruments - Yeehing Electronics
Automotive four-channel fixed multidirectional level shifter
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.761 |
| 100 — 249 | 0.585 |
| 250 — 999 | 0.431 |
| 1,000 + | 0.22 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| TXU0204QWBQARQ1 Datasheet |
More Information
TXU0204-Q1 is a 4-bit, dual-supply noninverting fixed direction voltage level translation device. Ax pins are referenced to VCCA logic level, OE pin can be referenced to either VCCA or VCCB logic levels, and Bx pins are referenced to VCCB logic levels. The A port is able to accept input voltages ranging from 1.1 V to 5.5 V, while the B port can also accept input voltages from 1.1 V to 5.5 V. Fixed direction data transmission can occur from A to B or B to A when OE is set to high in reference to either supply. When OE is set to low, all output pins are in the high-impedance state. See Device Functional Modes for a summary of the operation of the control logic.
