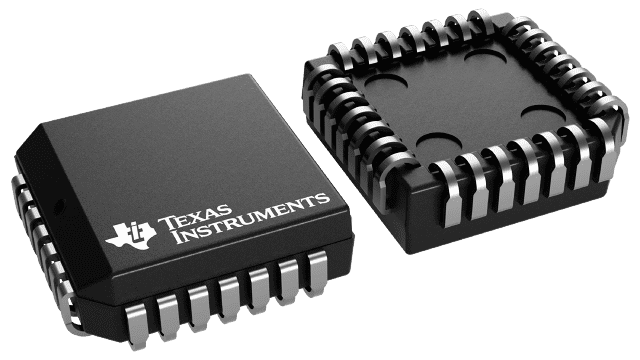

ADC0808CCV/NOPB Texas Instruments - Yeehing Electronics
8-bit, 1-Ch µP Compatible A/D Converters with 0.75 LSB INL
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 6.517 |
100 — 249 | 5.313 |
250 — 999 | 4.176 |
1,000 + | 2.48 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Analog to Digital Converters - ADC |
RoHS | Y |
Series | ADC0808-N |
Mounting Style | SMD/SMT |
Package / Case | PLCC-28 |
Resolution | 8 bit |
Number of Channels | 8 Channel |
Sampling Rate | 10 kS/s |
Input Type | Single-Ended |
Interface Type | Parallel |
Architecture | SAR |
Reference Type | External |
Analog Supply Voltage | 5 V |
Digital Supply Voltage | 5 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Packaging | Tube |
Height | 3.68 mm |
Input Voltage | 5 V |
Length | 11.43 mm |
Number of Converters | 1 Converter |
Output Type | TTL |
Power Consumption | 15 mW |
Type | S/H ADC |
Width | 11.43 mm |
Brand | Texas Instruments |
INL - Integral Nonlinearity | 0.5 LSB |
Moisture Sensitive | Yes |
Number of ADC Inputs | 8 Input |
Operating Supply Voltage | 5 V |
Pd - Power Dissipation | 875 mW |
Product Type | ADCs - Analog to Digital Converters |
Sample and Hold | Yes |
Factory Pack Quantity | 35 |
Subcategory | Data Converter ICs |
Unit Weight | 0.041719 oz |
For more information, please refer to datasheet
Documents
ADC0808CCV/NOPB Datasheet |
More Information
The ADC0808, ADC0809 data acquisition component is a monolithic CMOS device with an 8-bit analog-to-digital converter, 8-channel multiplexer and microprocessor compatible control logic. The 8-bit A/D converter uses successive approximation as the conversion technique. The converter features a high impedance chopper stabilized comparator, a 256R voltage divider with analog switch tree and a successive approximation register. The 8-channel multiplexer can directly access any of 8-single-ended analog signals.
