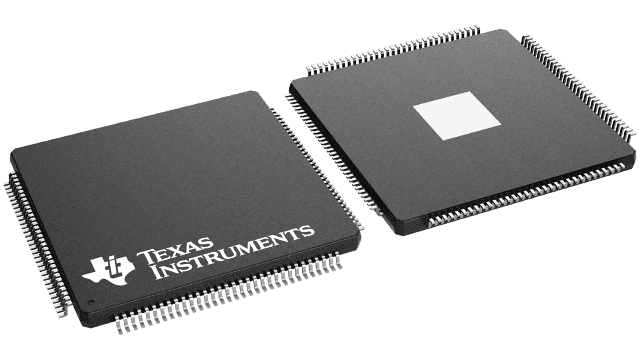

ADC081000CIYB/NOPB


YeeHing #: Y004-ADC081000CIYB/NOPB
Inventory: 3200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

ADC081000CIYB/NOPB Texas Instruments - Yeehing Electronics

High Performance, Low Power 8-Bit, 1 GSPS A/D Converter

Pricing (USD)

Quantity Unit Price
1 — 99 127.457
100 — 249 123.623
250 — 999 102.924
1,000 + 67.08

The above prices are for reference only.

Specifications

Manufacturer Cirrus Logic
Product Category Analog to Digital Converters - ADC
RoHS Y
Series WM8224
Mounting Style SMD/SMT
Package / Case QFN-32
Resolution 16 bit
Sampling Rate 60 MS/s
Interface Type Serial
Minimum Operating Temperature 0 C
Maximum Operating Temperature + 70 C
Packaging Tray
Number of Converters 1 Converter
Brand Cirrus Logic
Product Type ADCs - Analog to Digital Converters
Factory Pack Quantity 490
Subcategory Data Converter ICs
Unit Weight 0.006653 oz

For more information, please refer to datasheet

Documents

ADC081000CIYB/NOPB Datasheet

More Information

The ADC081000 is a low power, high performance CMOS analog-to-digital converter that digitizes signals to 8 bits resolution at sampling rates up to 1.6 GSPS. Consuming a typical 1.4 Watts at 1 GSPS from a single 1.9 Volt supply, this device is ensured to have no missing codes over the full operating temperature range. The unique folding and interpolating architecture, the fully differential comparator design, the innovative design of the internal sample-and-hold amplifier and the self-calibration scheme enable a very flat response of all dynamic parameters beyond Nyquist, producing a high 7.5 ENOB with a 500 MHz input signal and a 1 GHz sample rate while providing a 10-18 B.E.R. Output formatting is offset binary and the LVDS digital outputs are compliant with IEEE 1596.3-1996, with the exception of a reduced common mode voltage of 0.8V.
