Texas Instruments

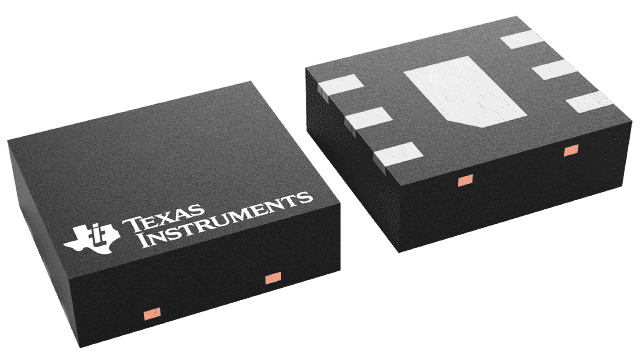

ADC081S051CISD/NOPB
ADC081S051CISD/NOPB
Regular price
$0.39 USD
Regular price
Sale price
$0.39 USD
Unit price
per
Couldn't load pickup availability
ADC081S051CISD/NOPB Texas Instruments - Yeehing Electronics
8-Bit, 500kSPS, 1-Ch SAR ADC with SPI
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.232 |
| 100 — 249 | 1.018 |
| 250 — 999 | 0.731 |
| 1,000 + | 0.39 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADC081S051 |
| Mounting Style | SMD/SMT |
| Package / Case | WSON-6 |
| Resolution | 8 bit |
| Number of Channels | 1 Channel |
| Sampling Rate | 500 kS/s |
| Input Type | Single-Ended |
| Interface Type | 3-Wire, SPI |
| Architecture | SAR |
| Reference Type | Supply |
| Analog Supply Voltage | 2.7 V to 5.25 V |
| Digital Supply Voltage | 2.7 V to 5.25 V |
| SNR - Signal to Noise Ratio | 49.6 dB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Features | Small Size |
| Height | 0.8 mm |
| Input Voltage | 5.25 V |
| Length | 2.2 mm |
| Number of Converters | 1 Converter |
| Power Consumption | 1.6 mW |
| Type | S/H ADC |
| Width | 2.5 mm |
| Brand | Texas Instruments |
| DNL - Differential Nonlinearity | 0.2 LSB |
| Gain Error | 0.4 LSB |
| INL - Integral Nonlinearity | 0.3 LSB |
| Number of ADC Inputs | 1 Input |
| Operating Supply Voltage | 3.3 V, 5 V |
| Product Type | ADCs - Analog to Digital Converters |
| Sample and Hold | Yes |
| SINAD - Signal to Noise and Distortion Ratio | 49.5 dB |
| Factory Pack Quantity | 1000 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.000342 oz |
For more information, please refer to datasheet
Documents
| ADC081S051CISD/NOPB Datasheet |
More Information
The ADC081S051 is a low-power, single channel CMOS 8-bit analog-to-digital converter with a high-speed serial interface. Unlike the conventional practice of specifying performance at a single sample rate only, the ADC081S051 is fully specified over a sample rate range of 200 ksps to 500 ksps. The converter is based on a successive-approximation register architecture with an internal track-and-hold circuit.
