Description

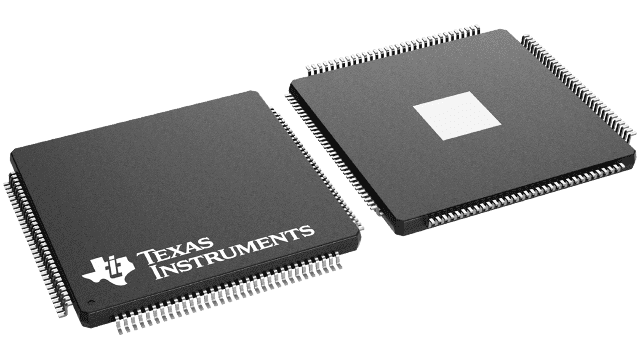

ADC083000CIYB/NOPB Texas Instruments - Yeehing Electronics
8-Bit, 3.0-GSPS Analog-to-Digital Converter (ADC)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1152.877 |
| 100 — 249 | 1061.379 |
| 250 — 999 | 914.982 |
| 1,000 + | 807.01 |
The above prices are for reference only.
Specifications
| Manufacturer | Analog Devices Inc. |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | AD9042 |
| Mounting Style | SMD/SMT |
| Package / Case | LQFP-44 |
| Resolution | 12 bit |
| Number of Channels | 1 Channel |
| Sampling Rate | 41 MS/s |
| Input Type | Single-Ended |
| Interface Type | Parallel |
| Architecture | Pipeline |
| Reference Type | Internal |
| SNR - Signal to Noise Ratio | 68 dB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Tray |
| Height | 1.4 mm |
| Input Voltage | 1.9 V/2.9 V |
| Length | 10 mm |
| Number of Converters | 1 Converter |
| Power Consumption | 595 mW |
| Type | S/H ADC |
| Width | 10 mm |
| Brand | Analog Devices |
| DNL - Differential Nonlinearity | +/- 1 LSB |
| Gain Error | +/- 6.5 %FSR |
| INL - Integral Nonlinearity | +/- 0.75 LSB |
| Moisture Sensitive | Yes |
| Number of ADC Inputs | 1 Input |
| Operating Supply Voltage | 5 V |
| Pd - Power Dissipation | 595 mW |
| Product Type | ADCs - Analog to Digital Converters |
| Sample and Hold | Yes |
| Factory Pack Quantity | 160 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.012561 oz |
For more information, please refer to datasheet
Documents
| ADC083000CIYB/NOPB Datasheet |
More Information
The ADC083000 is a single, low power, high performance CMOS analog-to-digital converter that digitizes signals to 8 bits resolution at sampling rates up to 3.4 GSPS. Consuming a typical 1.9 Watts at 3 GSPS from a single 1.9 Volt supply, this device is guaranteed to have no missing codes over the full operating temperature range. The unique folding and interpolating architecture, the fully differential comparator design, the innovative design of the internal sample-and-hold amplifier and the self-calibration scheme enable an excellent response of all dynamic parameters up to Nyquist, producing a high 7.0 Effective Number Of Bits, (ENOB) with a 748 MHz input signal and a 3 GHz sample rate while providing a 10
