Description

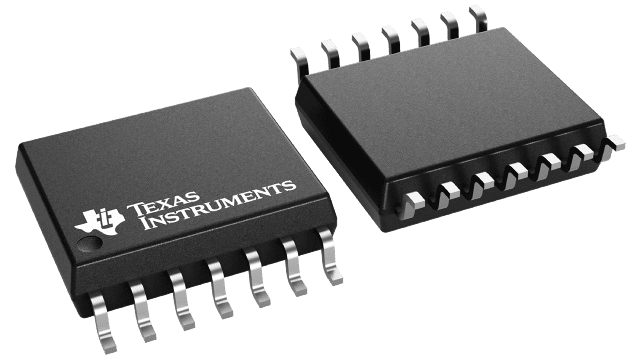

ADC0831CCWM/NOPB Texas Instruments - Yeehing Electronics
8-Bit, 1-Ch Serial I/O A/D Converter
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.753 |
| 100 — 249 | 3.289 |
| 250 — 999 | 2.306 |
| 1,000 + | 1.30 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADC0831-N |
| Mounting Style | SMD/SMT |
| Package / Case | SOIC-14 Wide |
| Resolution | 8 bit |
| Number of Channels | 1 Channel |
| Sampling Rate | 31 kS/s |
| Input Type | Differential/Single-Ended |
| Interface Type | 3-Wire |
| Architecture | SAR |
| Reference Type | External |
| Analog Supply Voltage | 5 V |
| Digital Supply Voltage | 5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Tube |
| Height | 2.3 mm |
| Input Voltage | 5 V |
| Length | 8.99 mm |
| Number of Converters | 1 Converter |
| Power Consumption | 4.5 mW |
| Type | ADC |
| Width | 7.5 mm |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Number of ADC Inputs | 1 Input |
| Operating Supply Voltage | 5 V |
| Pd - Power Dissipation | 800 mW |
| Product Type | ADCs - Analog to Digital Converters |
| Sample and Hold | No |
| Factory Pack Quantity | 50 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.013147 oz |
For more information, please refer to datasheet
Documents
| ADC0831CCWM/NOPB Datasheet |
More Information
The ADC0831 series are 8-bit successive approximation A/D converters with a serial I/O and configurable input multiplexers with up to 8 channels. The serial I/O is configured to comply with the TI MICROWIRE serial data exchange standard for easy interface to the COPS family of processors, and can interface with standard shift registers or μPs.
