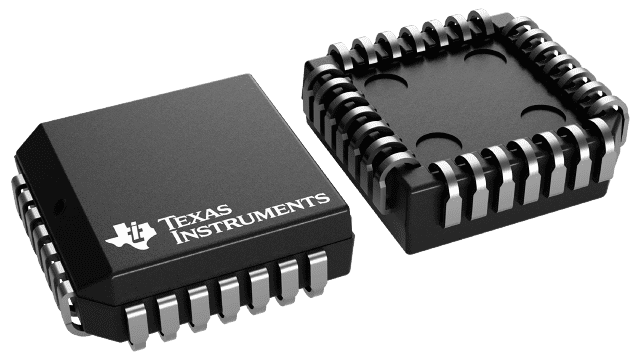

ADC0848CCV/NOPB Texas Instruments - Yeehing Electronics
8-Bit, 8-channel, microprocessor compatible A/D converter with multiplexer option
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 8.501 |
| 100 — 249 | 6.93 |
| 250 — 999 | 5.447 |
| 1,000 + | 3.23 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADC0848 |
| Mounting Style | SMD/SMT |
| Package / Case | PLCC-28 |
| Resolution | 8 bit |
| Number of Channels | 8 Channel |
| Sampling Rate | 25 kS/s |
| Input Type | Differential/Pseudo-Differential/Single-Ended |
| Interface Type | Parallel |
| Architecture | SAR |
| Reference Type | External |
| Analog Supply Voltage | 5 V |
| Digital Supply Voltage | 5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Tube |
| Height | 3.68 mm |
| Input Voltage | 5 V |
| Length | 11.43 mm |
| Number of Converters | 1 Converter |
| Power Consumption | 5 mW |
| Type | ADC |
| Width | 11.43 mm |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Number of ADC Inputs | 8 Input, 7 Input, 4 Input |
| Operating Supply Voltage | 5 V |
| Pd - Power Dissipation | 875 mW |
| Product Type | ADCs - Analog to Digital Converters |
| Sample and Hold | No |
| Factory Pack Quantity | 35 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.041719 oz |
For more information, please refer to datasheet
Documents
| ADC0848CCV/NOPB Datasheet |
More Information
The ADC0844 and ADC0848 are CMOS 8-bit successive approximation A/D converters with versatile analog input multiplexers. The 4-channel or 8-channel multiplexers can be software configured for single-ended, differential or pseudo-differential modes of operation.
