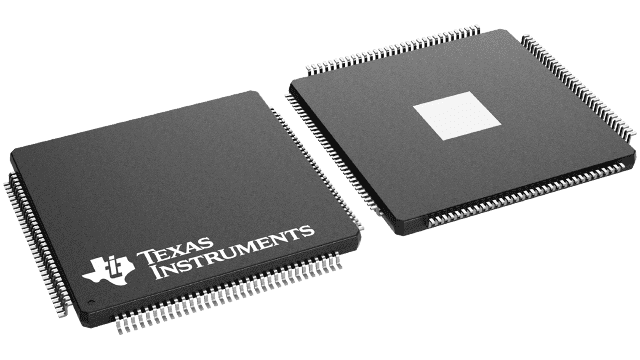

ADC08500CIYB/NOPB Texas Instruments - Yeehing Electronics
8-Bit, 500-MSPS Analog-to-Digital Converter (ADC)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 50.652 |
| 100 — 249 | 45.024 |
| 250 — 999 | 37.013 |
| 1,000 + | 23.17 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADC08500 |
| Mounting Style | SMD/SMT |
| Package / Case | LQFP-EP-128 |
| Resolution | 8 bit |
| Number of Channels | 1 Channel |
| Sampling Rate | 500 MS/s |
| Input Type | Differential |
| Interface Type | Serial |
| Architecture | Folding Interpolating |
| Reference Type | Internal |
| Analog Supply Voltage | 1.9 V |
| Digital Supply Voltage | 1.8 V to 2 V |
| SNR - Signal to Noise Ratio | 48 dB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Tray |
| Features | Low Power |
| Height | 1.4 mm |
| Input Voltage | 0.65 V, 0.87 V |
| Length | 20 mm |
| Number of Converters | 1 Converter |
| Output Type | LVDS |
| Power Consumption | 800 mW |
| Product | Analog to Digital Converters |
| Type | ADC |
| Width | 20 mm |
| Brand | Texas Instruments |
| DNL - Differential Nonlinearity | +/- 0.15 LSB |
| ENOB - Effective Number of Bits | 7.5 Bit |
| Gain Error | 25 mV |
| INL - Integral Nonlinearity | 0.9 LSB |
| Moisture Sensitive | Yes |
| Number of ADC Inputs | 1 Input |
| Operating Supply Voltage | 1.9 V |
| Pd - Power Dissipation | 2 W |
| Product Type | ADCs - Analog to Digital Converters |
| Sample and Hold | Yes |
| SFDR - Spurious Free Dynamic Range | 56 dB |
| SINAD - Signal to Noise and Distortion Ratio | 47 dB |
| Factory Pack Quantity | 60 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.042350 oz |
For more information, please refer to datasheet
Documents
| ADC08500CIYB/NOPB Datasheet |
More Information
The ADC08500 is a low power, high performance CMOS analog-to-digital converter that digitizes signals to 8 bits resolution at sampling rates up to 500 MSPS. Consuming a typical 0.8 Watts at 500 MSPS from a single 1.9 Volt supply, this device is ensured to have no missing codes over the full operating temperature range. The unique folding and interpolating architecture, the fully differential comparator design, the innovative design of the internal sample-and-hold amplifier and the self-calibration scheme enable a very flat response of all dynamic parameters beyond Nyquist, producing a high 7.5 ENOB with a 250 MHz input signal and a 500 MHz sample rate while providing a 10-18 B.E.R. Output formatting is offset binary and the LVDS digital outputs are compatible with IEEE 1596.3-1996, with the exception of an adjustable common mode voltage between 0.8V and 1.2V.
