ADC08B3000CIYB/NOPB Texas Instruments - Yeehing Electronics

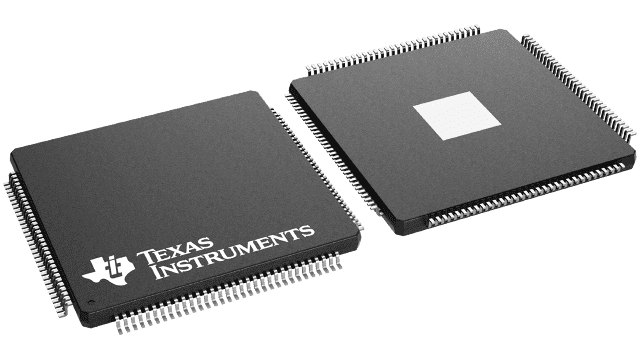

8-Bit, 3.0-GSPS Analog-to-Digital Converter (ADC) with 4K Buffer
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 296.182 |
| 100 — 249 | 272.675 |
| 250 — 999 | 235.065 |
| 1,000 + | 207.33 |
The above prices are for reference only.
Specifications
| Manufacturer | Maxim Integrated |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | MAX187C |
| Mounting Style | SMD/SMT |
| Package / Case | SOIC-16 Wide |
| Resolution | 12 bit |
| Number of Channels | 1 Channel |
| Sampling Rate | 75 kS/s |
| Input Type | Single-Ended |
| Interface Type | SPI |
| Architecture | SAR |
| Reference Type | External, Internal |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 70 C |
| Packaging | Reel |
| Height | 2.35 mm |
| Length | 10.5 mm |
| Number of Converters | 1 Converter |
| Width | 7.6 mm |
| Brand | Maxim Integrated |
| DNL - Differential Nonlinearity | +/- 1 LSB |
| INL - Integral Nonlinearity | +/- 2 LSB |
| Operating Supply Voltage | 4.75 V to 5.25 V |
| Pd - Power Dissipation | 500 mW (1/2 W) |
| Product Type | ADCs - Analog to Digital Converters |
| Reference Voltage | 4.096 V |
| Factory Pack Quantity | 1000 |
| Subcategory | Data Converter ICs |
| Part # Aliases | MAX187C |
| Unit Weight | 0.016709 oz |
For more information, please refer to datasheet
Documents
| ADC08B3000CIYB/NOPB Datasheet |
More Information
The ADC08B3000 is a single, low power, high performance CMOS analog-to-digital converter that digitizes signals to 8 bits resolution at sample rates up to 3.4 Gigasamples Per Second, (Gsps). Consuming a typical 1.6 Watts at 3 Gsps from a single 1.9 Volt supply, this device is ensured to have no missing codes over the full operating temperature range. The unique folding and interpolating architecture, the fully differential comparator design, the innovative design of the internal sample-and-hold amplifier and the calibration scheme enable an excellent response of all dynamic parameters up to Nyquist, producing a high 7.1 Effective Number Of Bits, (ENOB), with a 748 MHz input signal and a 3 GHz sample rate while providing a 10-18 Code Error Rate. A sample rate of 3 Gsps is achieved by interleaving two ADCs, each operating at 1.5 Gsps. Output formatting is offset binary. The device contains a 4K Capture Buffer with output on two 8-bit Low Voltage CMOS (LVCMOS) output buses at rates up to 200MHz.
