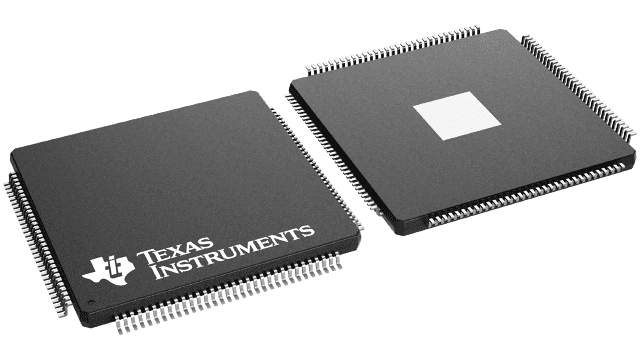

ADC08D1000CIYB/NOPB Texas Instruments - Yeehing Electronics
8-Bit, Dual 1.0-GSPS or Single 2.0-GSPS Analog-to-Digital Converter (ADC)
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 297.563 |
100 — 249 | 269.346 |
250 — 999 | 261.65 |
1,000 + | 179.56 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Analog to Digital Converters - ADC |
RoHS | Y |
Series | ADS8284 |
Mounting Style | SMD/SMT |
Package / Case | VQFN-64 |
Resolution | 18 bit |
Number of Channels | 4 Channel |
Sampling Rate | 1 MS/s |
Input Type | Differential/Pseudo-Differential |
Interface Type | Parallel |
Architecture | SAR |
Reference Type | External, Internal |
Analog Supply Voltage | 4.75 V to 5.25 V |
Digital Supply Voltage | 2.7 V to 5.25 V |
SNR - Signal to Noise Ratio | 98.4 dB |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Packaging | Reel |
Height | 0.88 mm |
Length | 9 mm |
Number of Converters | 1 Converter |
Width | 9 mm |
Brand | Texas Instruments |
DNL - Differential Nonlinearity | - 1 /1.5 LSB |
INL - Integral Nonlinearity | +/- 2.5 LSB |
Moisture Sensitive | Yes |
Operating Supply Voltage | 5 V |
Product Type | ADCs - Analog to Digital Converters |
Factory Pack Quantity | 250 |
Subcategory | Data Converter ICs |
Unit Weight | 0.008021 oz |
For more information, please refer to datasheet
Documents
ADC08D1000CIYB/NOPB Datasheet |
More Information
The ADC08D1000 is a dual, low power, high performance CMOS analog-to-digital converter that digitizes signals to 8 bits resolution at sampling rates up to 1.3 GSPS. Consuming a typical 1.6 Watts at 1 GSPS from a single 1.9 Volt supply, this device is ensured to have no missing codes over the full operating temperature range. The unique folding and interpolating architecture, the fully differential comparator design, the innovative design of the internal sample-and-hold amplifier and the self-calibration scheme enable a very flat response of all dynamic parameters beyond Nyquist, producing a high 7.4 ENOB with a 500 MHz input signal and a 1 GHz sample rate while providing a 10-18 B.E.R. Output formatting is offset binary and the LVDS digital outputs are compatible with IEEE 1596.3-1996, with the exception of an adjustable common mode voltage between 0.8V and 1.2V.
