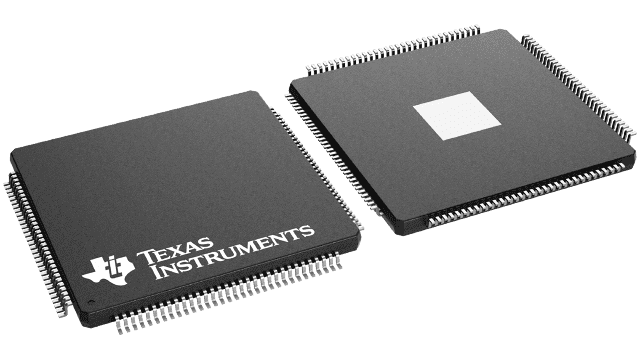

ADC08D1520CIYB/NOPB Texas Instruments - Yeehing Electronics
8-Bit, Dual 1.5-GSPS or Single 3.0-GSPS Analog-to-Digital Converter (ADC)
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 587.813 |
100 — 249 | 541.161 |
250 — 999 | 466.518 |
1,000 + | 411.47 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Analog to Digital Converters - ADC |
RoHS | Y |
Series | ADS62P45 |
Mounting Style | SMD/SMT |
Package / Case | VQFN-64 |
Resolution | 14 bit |
Number of Channels | 2 Channel |
Sampling Rate | 125 MS/s |
Input Type | Differential |
Interface Type | Parallel |
Architecture | Pipeline |
Reference Type | External, Internal |
Analog Supply Voltage | 3.3 V |
Digital Supply Voltage | 3 V to 3.6 V |
SNR - Signal to Noise Ratio | 74.2 dB |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Packaging | Reel |
Features | High Performance |
Height | 0.88 mm |
Length | 9 mm |
Number of Converters | 2 Converter |
Output Type | LVDS |
Power Consumption | 792 mW |
Width | 9 mm |
Brand | Texas Instruments |
Development Kit | ADS62P45EVM |
DNL - Differential Nonlinearity | +/- 0.8 LSB |
ENOB - Effective Number of Bits | 11.8 Bit |
INL - Integral Nonlinearity | +/- 5 LSB |
Moisture Sensitive | Yes |
Operating Supply Voltage | 3.3 V |
Pd - Power Dissipation | 908 mW |
Product Type | ADCs - Analog to Digital Converters |
SFDR - Spurious Free Dynamic Range | 85 dB |
SINAD - Signal to Noise and Distortion Ratio | 73.2 dB |
Factory Pack Quantity | 250 |
Subcategory | Data Converter ICs |
Unit Weight | 0.007383 oz |
For more information, please refer to datasheet
Documents
ADC08D1520CIYB/NOPB Datasheet |
More Information
The ADC08D1520 is a dual, low power, high performance CMOS analog-to-digital converter that builds upon the ADC08D1500 platform. The ADC08D1520 digitizes signals to 8 bits of resolution at sample rates up to 1.7 GSPS. It has expanded features compared to the ADC08D1500, which include a test pattern output for system debug, a clock phase adjust, and selectable output demultiplexer modes. Consuming a typical 1.6 Watts in Non-Demultiplex Mode at 1.0 GSPS from a single 1.9 Volt supply, this device is guaranteed to have no missing codes over the full operating temperature range. The unique folding and interpolating architecture, the fully differential comparator design, the innovative design of the internal sample-and-hold amplifier and the self-calibration scheme enable a very flat response of all dynamic parameters beyond Nyquist, producing a high 7.4 Effective Number of Bits (ENOB) with a 748 MHz input signal and a 1.5 GHz sample rate while providing a 10-18 Code Error Rate (C.E.R.) Output formatting is offset binary and the Low Voltage Differential Signaling (LVDS) digital outputs are compatible with IEEE 1596.3-1996, with the exception of an adjustable common mode voltage between 0.8V and 1.2V.
