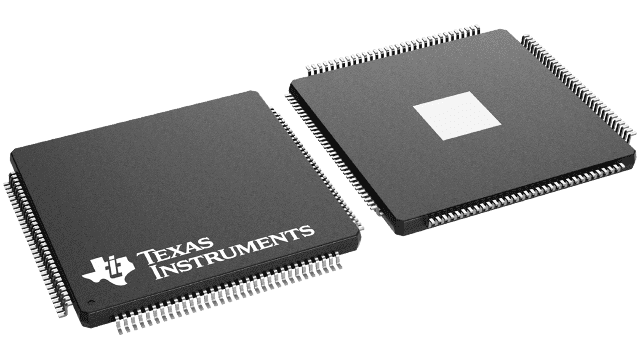

ADC08D500CIYB/NOPB


YeeHing #: Y004-ADC08D500CIYB/NOPB
Inventory: 6200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

ADC08D500CIYB/NOPB Texas Instruments - Yeehing Electronics

8-Bit, Dual 500-MSPS or Single 1.0-GSPS Analog-to-Digital Converter (ADC)

Pricing (USD)

Quantity Unit Price
1 — 99 131.258
100 — 249 127.31
250 — 999 105.993
1,000 + 69.08

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Analog to Digital Converters - ADC
RoHS Y
Series ADS8866
Mounting Style SMD/SMT
Package / Case VSON-10
Resolution 16 bit
Number of Channels 1 Channel
Sampling Rate 100 kS/s
Input Type Single-Ended
Interface Type Serial, SPI
Architecture SAR
Reference Type External
Analog Supply Voltage 2.7 V to 3.6 V
Digital Supply Voltage 1.65 V to 3.6 V
SNR - Signal to Noise Ratio 93 dB
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Packaging Reel
Features Daisy-Chainable, Oscillator, Small Size
Power Consumption 0.7 mW
Product Analog to Digital Converters
Brand Texas Instruments
Operating Supply Voltage 2.7 V to 3.6 V
Product Type ADCs - Analog to Digital Converters
SINAD - Signal to Noise and Distortion Ratio 92.9 dB
Factory Pack Quantity 3000
Subcategory Data Converter ICs
Unit Weight 0.001386 oz

For more information, please refer to datasheet

Documents

ADC08D500CIYB/NOPB Datasheet

More Information

The ADC08D500 is a dual, low power, high performance CMOS analog-to-digital converter that digitizes signals to 8 bits resolution at sampling rates up to 500 MSPS. Consuming a typical 1.4 Watts at 500 MSPS from a single 1.9 Volt supply, this device is ensured to have no missing codes over the full operating temperature range. The unique folding and interpolating architecture, the fully differential comparator design, the innovative design of the internal sample-and-hold amplifier and the self-calibration scheme enable a very flat response of all dynamic parameters beyond Nyquist, producing a high 7.5 ENOB with a 250 MHz input signal and a 500 MHz sample rate while providing a 10-18 B.E.R. Output formatting is offset binary and the LVDS digital outputs are compatible with IEEE 1596.3-1996, with the exception of an adjustable common mode voltage between 0.8V and 1.2V.
