Texas Instruments

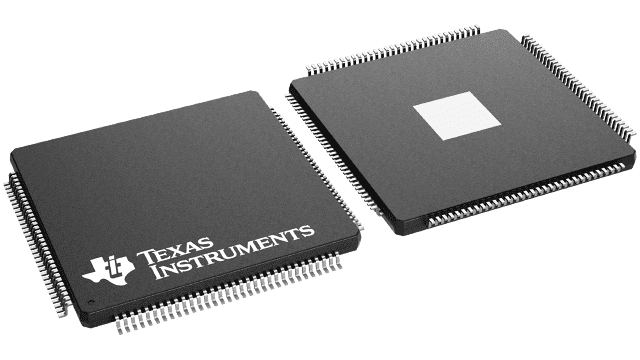

ADC08D502CIYB/NOPB

ADC08D502CIYB/NOPB

Regular price $39.98 USD
Regular price Sale price $39.98 USD
Sale Sold out
YeeHing #
Inventory

ADC08D502CIYB/NOPB Texas Instruments - Yeehing Electronics

Dual-Channel, 8-Bit, 500-MSPS Analog-to-Digital Converter (ADC)

Pricing (USD)

Quantity Unit Price
1 — 99 75.959
100 — 249 73.674
250 — 999 61.338
1,000 + 39.98

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

ADC08D502CIYB/NOPB Datasheet

More Information

The ADC08D502 is a dual, low power, high performance CMOS analog-to-digital converter that digitizes signals to 8 bits resolution at sampling rates up to 500 MSPS. Consuming a typical 1.4 Watts at 500 MSPS from a single 1.9 Volt supply, this device is specified to have no missing codes over the full operating temperature range. The unique folding and interpolating architecture, the fully differential comparator design, the innovative design of the internal sample-and-hold amplifier and the self-calibration scheme enable a very flat response of all dynamic parameters beyond Nyquist, producing a high 7.5 ENOB with a 250 MHz input signal and a 500 MHz sample rate while providing a 10-18 B.E.R. Output formatting is offset binary and the LVDS digital outputs are compatible with IEEE 1596.3-1996, with the exception of an adjustable common mode voltage between 0.8V and 1.2V.
