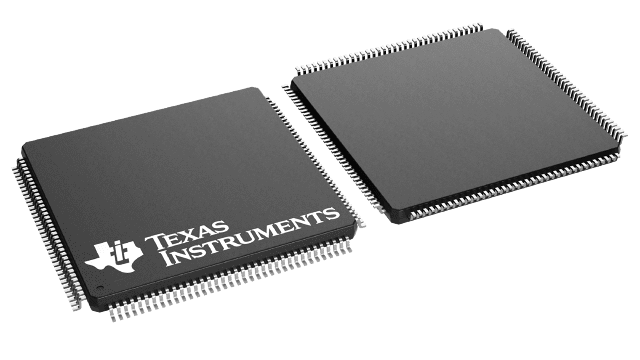

ADC08DL502CIVV/NOPB Texas Instruments - Yeehing Electronics
Dual-Channel, 8-Bit, 500-MSPS Analog-to-Digital Converter (ADC)
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 57.982 |
100 — 249 | 51.54 |
250 — 999 | 42.369 |
1,000 + | 26.53 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Analog to Digital Converters - ADC |
RoHS | Y |
Series | ADC08DL502 |
Mounting Style | SMD/SMT |
Package / Case | LQFP-144 |
Resolution | 8 bit |
Number of Channels | 2 Channel |
Sampling Rate | 500 MS/s |
Architecture | Folding Interpolating |
Analog Supply Voltage | 1.9 V |
Digital Supply Voltage | 1.8 V to 2 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 70 C |
Features | Low Power |
Power Consumption | 1.25 W |
Brand | Texas Instruments |
DNL - Differential Nonlinearity | +/- 0.15 LSB |
ENOB - Effective Number of Bits | 7.6 Bit |
Moisture Sensitive | Yes |
Product Type | ADCs - Analog to Digital Converters |
SFDR - Spurious Free Dynamic Range | 59.1 dB |
SINAD - Signal to Noise and Distortion Ratio | 47.6 dB |
Factory Pack Quantity | 60 |
Subcategory | Data Converter ICs |
Unit Weight | 0.045518 oz |
For more information, please refer to datasheet
Documents
ADC08DL502CIVV/NOPB Datasheet |
More Information
The ADC08DL502 is a dual, low power, high performance, CMOS analog-to-digital converter. The ADC08DL502 digitizes signals to 8 bits of resolution at sample rates up to 500 MSPS. Consuming a typical 1.2 Watts in demultiplex mode at 500 MSPS from a single 1.9 Volt supply, this device is ensured to have no missing codes over the full operating temperature range. The unique folding and interpolating architecture, the fully differential comparator design, the innovative design of the internal sample-and-hold amplifier and the calibration schemes enable a very flat response of all dynamic parameters beyond Nyquist, producing a high 7.5 Effective Number of Bits (ENOB) with a 125 MHz input signal and a 500 MHz sample rate while providing a 10−18 Code Error Rate (C.E.R.)
