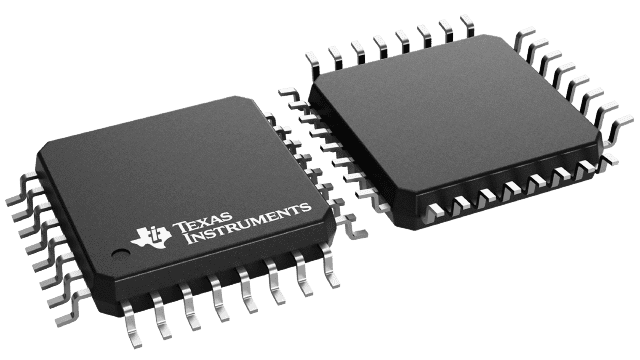

ADC10321CIVT/NOPB Texas Instruments - Yeehing Electronics
10-Bit, 20-MSPS Analog-to-Digital Converter (ADC)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.899 |
| 100 — 249 | 4.809 |
| 250 — 999 | 3.78 |
| 1,000 + | 2.24 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADC10321 |
| Mounting Style | SMD/SMT |
| Package / Case | LQFP-32 |
| Resolution | 10 bit |
| Number of Channels | 1 Channel |
| Sampling Rate | 20 MS/s |
| Input Type | Differential |
| Interface Type | Parallel |
| Architecture | 2-Step |
| Reference Type | External |
| Analog Supply Voltage | 5 V |
| Digital Supply Voltage | 2.7 V to 5.5 V |
| SNR - Signal to Noise Ratio | 60 dB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Tray |
| Features | Low Power |
| Height | 1.4 mm |
| Input Voltage | 4 V |
| Length | 7 mm |
| Number of Converters | 1 Converter |
| Power Consumption | 98 mW |
| Type | S/H ADC |
| Width | 7 mm |
| Brand | Texas Instruments |
| DNL - Differential Nonlinearity | +/- 0.35 LSB |
| ENOB - Effective Number of Bits | 9.5 Bit |
| Gain Error | - 6 mV |
| INL - Integral Nonlinearity | 1 LSB |
| Moisture Sensitive | Yes |
| Number of ADC Inputs | 1 Input |
| Operating Supply Voltage | 5 V |
| Product Type | ADCs - Analog to Digital Converters |
| Sample and Hold | Yes |
| SFDR - Spurious Free Dynamic Range | 72 dB |
| SINAD - Signal to Noise and Distortion Ratio | 59 dB |
| Factory Pack Quantity | 250 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.027302 oz |
For more information, please refer to datasheet
Documents
| ADC10321CIVT/NOPB Datasheet |
More Information
The ADC10321 is a low power, high performance CMOS analog-to-digital converter that digitizes signals to 10 bits resolution at sampling rates up to 25Msps while consuming a typical 98mW from a single 5V supply. Reference force and sense pins allow the user to connect an external reference buffer amplifier to ensure optimal accuracy. No missing codes is ensured over the full operating temperature range. The unique two stage architecture achieves 9.2 Effective Bits with a 10MHz input signal and a 20MHz clock frequency. Output formatting is straight binary coding.
