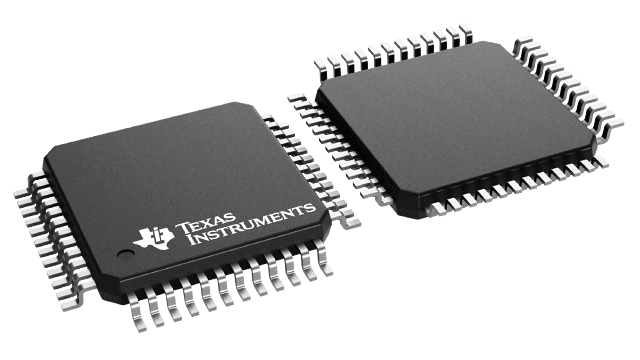

ADC10D040CIVS/NOPB Texas Instruments - Yeehing Electronics
Dual-Channel, 10-Bit, 40-MSPS Analog-to-Digital Converter (ADC)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 10.767 |
| 100 — 249 | 9.405 |
| 250 — 999 | 7.251 |
| 1,000 + | 5.19 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADC10D040 |
| Mounting Style | SMD/SMT |
| Package / Case | TQFP-48 |
| Resolution | 10 bit |
| Number of Channels | 2 Channel |
| Sampling Rate | 40 MS/s |
| Input Type | Differential |
| Interface Type | Parallel |
| Architecture | 2-Step |
| Reference Type | External, Internal |
| Analog Supply Voltage | 3.3 V |
| Digital Supply Voltage | 1.5 V to 3.6 V |
| SNR - Signal to Noise Ratio | 60 dB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Tray |
| Features | Low Power |
| Height | 1 mm |
| Input Voltage | 1.4 V, 2.8 V |
| Length | 7 mm |
| Number of Converters | 2 Converter |
| Power Consumption | 267 mW |
| Type | S/H ADC |
| Width | 7 mm |
| Brand | Texas Instruments |
| DNL - Differential Nonlinearity | +/- 0.35 LSB |
| ENOB - Effective Number of Bits | 9.5 Bit |
| Gain Error | - 12 % FSR to + 5 % FSR |
| INL - Integral Nonlinearity | 1.9 LSB |
| Moisture Sensitive | Yes |
| Number of ADC Inputs | 2 Input |
| Operating Supply Voltage | 3.3 V |
| Product Type | ADCs - Analog to Digital Converters |
| Sample and Hold | Yes |
| SFDR - Spurious Free Dynamic Range | 72 dB |
| SINAD - Signal to Noise and Distortion Ratio | 59 dB |
| Factory Pack Quantity | 250 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.004748 oz |
For more information, please refer to datasheet
Documents
| ADC10D040CIVS/NOPB Datasheet |
More Information
The ADC10D040 is a dual low power, high performance CMOS analog-to-digital converter that digitizes signals to 10 bits resolution at sampling rates up to 45 MSPS while consuming a typical 267 mW from a single 3.3V supply. No missing codes is specified over the full operating temperature range. The unique two stage architecture achieves 9.4 Effective Bits over the entire Nyquist band at 40 MHz sample rate. An output formatting choice of offset binary or 2's complement coding and a choice of two gain settings eases the interface to many systems. Also allowing great flexibility of use is a selectable 10-bit multiplexed or 20-bit parallel output mode. An offset correction feature minimizes the offset error.
