ADC10D1000CIUT/NOPB Texas Instruments - Yeehing Electronics

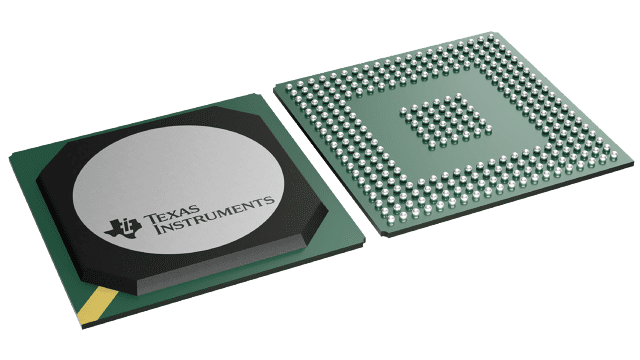

10-Bit, Dual 1.0-GSPS or Single 2.0-GSPS Analog-to-Digital Converter (ADC)
Pricing (USD)
Quantity | Unit Price |
1 — 99 | None |
100 — 249 | None |
250 — 999 | None |
1,000 + | None |
The above prices are for reference only.
Specifications
Manufacturer | Analog Devices Inc. |
Product Category | Analog to Digital Converters - ADC |
RoHS | Y |
Series | AD9626 |
Mounting Style | SMD/SMT |
Package / Case | LFCSP-56 |
Resolution | 12 bit |
Number of Channels | 1 Channel |
Sampling Rate | 250 MS/s |
Input Type | Differential |
Interface Type | Parallel |
Architecture | Pipeline |
Reference Type | Internal |
SNR - Signal to Noise Ratio | 64.5 dB |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Packaging | Reel |
Height | 0.83 mm |
Input Voltage | 1.25 Vp-p |
Length | 8 mm |
Number of Converters | 1 Converter |
Output Type | LVDS |
Power Consumption | 310 mW |
Type | S/H ADC |
Width | 8 mm |
Brand | Analog Devices |
Development Kit | AD9626-250EBZ |
DNL - Differential Nonlinearity | +/- 0.6 LSB |
Gain Error | - 2.1 %FSR/4.5 %FSR |
INL - Integral Nonlinearity | +/- 1.1 LSB |
Moisture Sensitive | Yes |
Number of ADC Inputs | 1 Input |
Operating Supply Voltage | 1.8 V |
Pd - Power Dissipation | 364 mW |
Product Type | ADCs - Analog to Digital Converters |
Sample and Hold | Yes |
Factory Pack Quantity | 750 |
Subcategory | Data Converter ICs |
For more information, please refer to datasheet
Documents
ADC10D1000CIUT/NOPB Datasheet |
More Information
The ADC10D1000/1500 is the latest advance in TI's Ultra-High-Speed ADC family. This low-power, high-performance CMOS analog-to-digital converter digitizes signals at 10-bit resolution for dual channels at sampling rates of up to 1.0/1.5 GSPS (Non-DES Mode) or for a single channel up to 2.0/3.0 GSPS (DES Mode). The ADC10D1000/1500 achieves excellent accuracy and dynamic performance while dissipating less than 2.8/3.6 Watts. The product is packaged in a leaded or lead-free 292-ball thermally enhanced BGA package over the rated industrial temperature range of -40°C to +85°C.
