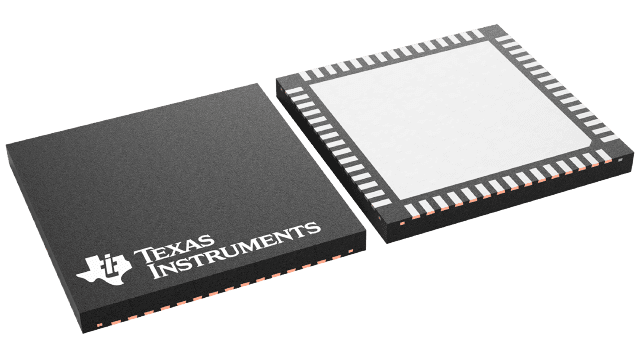

ADC11DS105CISQE/NOPB Texas Instruments - Yeehing Electronics
Dual-Channel, 11-Bit, 105MSPS Analog-to-Digital Converter (ADC)
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 61.315 |
100 — 249 | 54.502 |
250 — 999 | 44.804 |
1,000 + | 28.05 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Analog to Digital Converters - ADC |
RoHS | Y |
Series | ADC11DS105 |
Mounting Style | SMD/SMT |
Package / Case | WQFN-60 |
Resolution | 11 bit |
Number of Channels | 2 Channel |
Sampling Rate | 105 MS/s |
Input Type | Differential |
Interface Type | Serial |
Architecture | Pipeline |
Reference Type | External, Internal |
Analog Supply Voltage | 2.7 V to 3.6 V |
Digital Supply Voltage | 2.7 V to 3.6 V |
SNR - Signal to Noise Ratio | 67.5 dB |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Packaging | Reel |
Features | Low Power |
Height | 0.8 mm |
Input Voltage | 2 V |
Length | 9 mm |
Number of Converters | 2 Converter |
Output Type | LVDS |
Power Consumption | 1 W |
Type | S/H ADC |
Width | 9 mm |
Brand | Texas Instruments |
DNL - Differential Nonlinearity | +/- 0.5 LSB |
ENOB - Effective Number of Bits | 10.9 Bit |
Gain Error | 1 % FSR |
INL - Integral Nonlinearity | +/- 0.75 LSB |
Moisture Sensitive | Yes |
Number of ADC Inputs | 2 Input |
Operating Supply Voltage | 3 V, 3.3 V |
Product Type | ADCs - Analog to Digital Converters |
Sample and Hold | Yes |
SFDR - Spurious Free Dynamic Range | 82 dB |
SINAD - Signal to Noise and Distortion Ratio | 67.4 dB |
Factory Pack Quantity | 250 |
Subcategory | Data Converter ICs |
For more information, please refer to datasheet
Documents
ADC11DS105CISQE/NOPB Datasheet |
More Information
The ADC11DS105is a high-performance CMOS analog-to-digital converters capable of converting two analog input signals into 11-bit digital words at rates up to 105 Mega Samples Per Second (MSPS). The digital outputs are serialized and provided on differential LVDS signal pairs. These converters use a differential, pipelined architecture with digital error correction and an on-chip sample-and-hold circuit to minimize power consumption and the external component count, while providing excellent dynamic performance. The ADC11DS105 may be operated from a single +3.0 or +3.3V power supply. A power-down feature reduces the power consumption to very low levels while still allowing fast wake-up time to full operation. The differential inputs accept a 2V full scale differential input swing. A stable 1.2V internal voltage reference is provided, or the ADC11DS105 can be operated with an external 1.2V reference. The selectable duty cycle stabilizer maintains performance over a wide range of clock duty cycles. A serial interface allows access to the internal registers for full control of the ADC11DS105's functionality. The ADC11DS105 is available in a 60-lead WQFN package and operates over the industrial temperature range of −40°C to +85°C.
