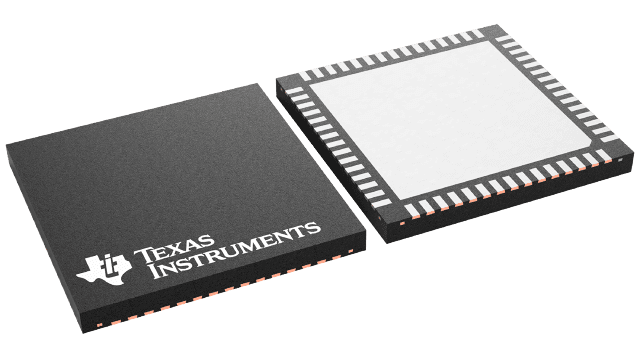

ADC11DV200CISQE/NOPB


YeeHing #: Y004-ADC11DV200CISQE/NOPB
Inventory: 5200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

ADC11DV200CISQE/NOPB Texas Instruments - Yeehing Electronics

Dual-Channel, 11-Bit, 200MSPS Analog-to-Digital Converter (ADC)

Pricing (USD)

Quantity Unit Price
1 — 99 93.071
100 — 249 90.272
250 — 999 75.156
1,000 + 48.98

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Analog to Digital Converters - ADC
RoHS Y
Series ADC11DV200
Mounting Style SMD/SMT
Package / Case WQFN-60
Resolution 11 bit
Number of Channels 2 Channel
Sampling Rate 200 MS/s
Input Type Differential
Interface Type Parallel
Architecture Pipeline
Reference Type External, Internal
Analog Supply Voltage 1.8 V
Digital Supply Voltage 1.8 V
SNR - Signal to Noise Ratio 63.8 dB
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Packaging Reel
Features Low Power
Height 0.8 mm
Input Voltage 1.5 V
Length 9 mm
Number of Converters 2 Converter
Output Type LVDS
Power Consumption 473 mW
Type S/H ADC
Width 9 mm
Brand Texas Instruments
Development Kit ADC11DV200EB/NOPB
DNL - Differential Nonlinearity +/- 0.32 LSB
ENOB - Effective Number of Bits 10.1 Bit
Gain Error 3 % FSR
INL - Integral Nonlinearity 1.5 LSB
Moisture Sensitive Yes
Number of ADC Inputs 2 Input
Operating Supply Voltage 1.8 V
Product Type ADCs - Analog to Digital Converters
Sample and Hold Yes
SFDR - Spurious Free Dynamic Range 82 dB
SINAD - Signal to Noise and Distortion Ratio 62.3 dB
Factory Pack Quantity 250
Subcategory Data Converter ICs
Unit Weight 0.007605 oz

For more information, please refer to datasheet

Documents

ADC11DV200CISQE/NOPB Datasheet

More Information

The ADC11DV200 is a monolithic analog-to-digital converter capable of converting two analog input signals into 11-bit digital words at rates up to 200 Mega Samples Per Second (MSPS). The digital output mode is selectable and can be either differential LVDS or CMOS signals. This converter uses a differential, pipelined architecture with digital error correction and an on-chip sample-and-hold circuit to minimize die size and power consumption while providing excellent dynamic performance. A unique sample-and-hold stage yields a full-power bandwidth of 900MHz. Fabricated in core CMOS process, the ADC11DV200 may be operated from a single 1.8V power supply. The ADC11DV200 achieves approximately 10.06 effective bits at Nyquist and consumes just 280mW at 170MSPS in CMOS mode 450mW at 200MSPS in LVDS mode. The power consumption can be scaled down further by reducing sampling rates.
